The skies are a complex network of routes, and every flight culminates in a landing at an aerodrome. For the safety and efficiency of air travel, each aerodrome is meticulously designed and operated according to specific standards, primarily dictated by the 'critical aircraft' it is intended to accommodate. This critical aircraft is essentially the aeroplane with the highest requirements that regularly uses the airport, setting the benchmark for its infrastructure. Understanding these classifications, particularly the ICAO Aerodrome Reference Code, is paramount for pilots, airport operators, and even the keen aviation enthusiast. One such common classification is the 4E aerodrome code, and it often sparks curiosity: which aircraft are truly compatible with such facilities?
Understanding the 4E Aerodrome Reference Code
The ICAO Aerodrome Reference Code is a fundamental classification system, detailed in ICAO Annex 14 Volume 1, designed to simplify the process of determining an aircraft's suitability for a particular aerodrome. This two-part code is based on the characteristics of the critical aircraft. The first element, a numeric code, relates to the aircraft's Reference Field Length, while the second element, a letter code, is derived from the aircraft's wingspan and outer main gear wheel span.
For an aerodrome assigned the reference code 4E, this signifies specific capabilities. The '4' indicates that the aerodrome is designed to accommodate aircraft with a Reference Field Length of 1800 metres and above. This is the minimum field length required for take-off at maximum certificated take-off mass under standard conditions. The 'E' in 4E refers to the aircraft's wingspan, meaning the aerodrome is typically equipped to handle aircraft with a wingspan up to 65 metres, and an outer main gear wheel span between 9 metres and 14 metres.
This combination ensures that runways are long enough, taxiways are wide enough, and obstacle-free areas are sufficient for aircraft falling within these parameters. Generally, many large wide-body aircraft, such as the Boeing 777 series, Airbus A330, and Airbus A340, comfortably fit within the standard operational envelope of a 4E aerodrome. These aircraft are designed with dimensions and performance characteristics that align perfectly with the infrastructure provided by a Code 4E airport, ensuring seamless and safe operations.
Beyond the Code: Accommodating Larger Aircraft
While the ICAO Aerodrome Reference Code provides a clear guideline, it's crucial to understand that it is not a strict, unyielding limit. The system is designed with a degree of flexibility, acknowledging that operational realities sometimes necessitate the use of an aerodrome by aircraft with a higher code letter than specified in its certificate. This is where the intricacies of aviation safety and operational planning truly come into play.
For instance, an aerodrome with a reference code 4E can, under specific circumstances, accommodate aircraft types with a Code Letter F. These include aviation giants like the Airbus A380, the gargantuan Antonov AN-124, and the modern Boeing B747-8F. These aircraft possess wingspans exceeding 65 metres (up to 80 metres), which technically places them outside the standard 'E' category. However, their occasional or even regular use of a 4E aerodrome is possible, provided stringent conditions are met. The primary prerequisites are prior approval by the local aviation authorities, such as the Civil Aviation Authority (CAA) in the UK, and the completion of a comprehensive safety assessment.
The objective of this safety assessment is multifaceted. It evaluates the suitability of existing facilities, scrutinising everything from runway and taxiway widths to turning radii, obstacle clearances, and even jet blast effects. Following this assessment, it determines the need for alternative measures, specific operational procedures, and potential operating restrictions for the particular aeroplane concerned. For example, a Code F aircraft might be restricted to certain taxiways, require specific power settings during turns, or necessitate additional marshalling guidance to ensure safe ground movement. These measures are critical to mitigating any risks associated with operating an aircraft larger than the aerodrome's certified design parameters.
European requirements, particularly Commission Regulation (EU) No 139/2014, provide even more detailed Implementing Rules (IR), Alternative Means of Compliance (AMC), and Guidance Material (GM) regarding the operation of Higher Code Letter aircraft. These regulations underscore the importance of meticulous planning and robust safety frameworks, requiring that Higher Code Letter aircraft operations be explicitly specified in the terms of the Aerodrome Certificate.
The Complexities of Higher Code Operations
Allowing higher code aircraft to operate at a 4E aerodrome, while feasible, is not without its significant challenges. One of the main hurdles lies in the sheer number and complexity of the regulations and associated guidance material. Interpreting these often intricate documents requires significant expertise and diligence. Furthermore, some guidance documents, while valuable, may be partially out of line with more recent ICAO requirements, having become outdated. For example, the results of the A380 Airport Compatibility Group date back to 2002, and the Boeing 747-8 Airport Compatibility Group to 2010. Relying solely on these older documents without considering modern updates and best practices can lead to errors, uncontrolled risks, or unnecessary investments.
Another substantial challenge is managing the cost of infrastructural measures required to achieve compliance. While safety remains the absolute top priority, airport operators must meticulously balance investment costs against expected traffic and real safety benefits. Upgrading a taxiway with shoulders along an entire 4000-metre straight segment to accommodate an A380, for instance, requires a colossal investment. If A380 operations are only planned on an occasional basis – perhaps for emergencies, diversions, or very rare charter flights – then operational solutions, rather than extensive infrastructure upgrades, often present a far more viable and cost-effective option. These operational solutions might include temporary restrictions, specific routing, or enhanced ground support procedures.
The process of conducting such a safety assessment is a demanding endeavour that requires a well-structured approach and considerable diligence. It involves comprehensive compliance checks, detailed aircraft movements, jet blast simulations, complex ILS (Instrument Landing System) interference risk modelling, ACN/PCN (Aircraft Classification Number/Pavement Classification Number) reviews, PAPI (Precision Approach Path Indicator) relocation studies, and thorough obstacle assessments. It also encompasses the regulatory aspects related to airport certification, ensuring every facet of the operation is scrutinised for safety and adherence to standards. Expert assistance from firms specialising in airport planning and operations is often sought to navigate these complexities, ensuring that the safety of air operations is never compromised.
The ICAO Aerodrome Reference Code Explained in Detail
To fully appreciate the significance of the 4E code, it's beneficial to delve deeper into the structure of the ICAO Aerodrome Reference Code itself. As mentioned, it has two elements:
Element 1: Numeric Code (Reference Field Length)
This element categorises aircraft based on their Reference Field Length, which is the minimum field length required for take-off at maximum certificated take-off mass, at sea level, in International Standard Atmosphere (ISA) conditions, in still air, and with zero runway slope, as documented in the Aircraft Flight Manual (AFM). The categories are as follows:
| Code Number | Reference Field Length (RFL) |
|---|---|
| 1 | Less than 800 m |
| 2 | 800 m to less than 1200 m |
| 3 | 1200 m to less than 1800 m |
| 4 | 1800 m and above |
As evident, a '4' code number indicates a requirement for substantial runway length, catering to the largest and heaviest aircraft.
Element 2: Letter Code (Wingspan and Outer Main Gear Wheel Span)
This element is derived from the most restrictive of either the aircraft's wingspan or its outer main gear wheel span. This is particularly relevant for detailed airport design, influencing factors like taxiway widths, turning pads, and separation distances. The categories are:
| Code Letter | Wingspan | Outer Main Gear Wheel Span (OMWGS) |
|---|---|---|
| A | Less than 15 m | Less than 4.5 m |
| B | 15 m to less than 24 m | 4.5 m to less than 6 m |
| C | 24 m to less than 36 m | 6 m to less than 9 m |
| D | 36 m to less than 52 m | 9 m to less than 14 m |
| E | 52 m to less than 65 m | 9 m to less than 14 m |
| F | 65 m to less than 80 m | 14 m to less than 16 m |
It's worth noting that Element 2, the letter code, is frequently used independently due to its direct relevance to the physical layout and design of airport infrastructure, such as taxiway widths, apron space, and stand dimensions.
Key Airport Characteristics and Operations Relevant to Aircraft Size

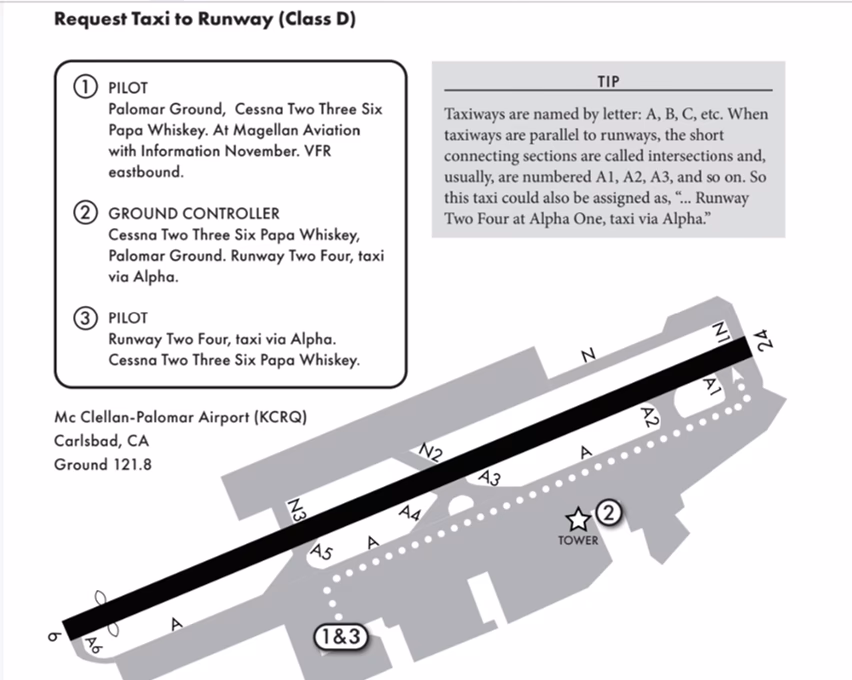

The classification of an airport directly impacts its physical characteristics and operational procedures. An airport, at its core, comprises a movement area and a manoeuvring area. The movement area includes parking spaces, gates, and ramps, while the manoeuvring area consists of the taxiways and runways. These elements are designed with the critical aircraft in mind.
For instance, the longitudinal slope of runways is carefully controlled – typically not above 1% for code number 3 and 4 runways, and not above 2% for code number 1 or 2 runways. Transversal slopes are also regulated, generally not exceeding 1.5% for runways catering to code letter C, D, E, F aircraft, ensuring stable operations for wide-body jets. Beyond the runways themselves, safety areas like runway strips, stop ways, and clear ways are integral. A stop way provides additional distance for aircraft to decelerate if a take-off is aborted, while a clear way is an obstacle-free zone beyond the runway end to assist with take-off. These features are dimensioned according to the aerodrome's code to enhance safety during critical phases of flight.
Declared distances, such as Landing Distance Available (LDA), Take-Off Run Available (TORA), Take-Off Distance Available (TODA), and Accelerate Stop Distance Available (ASDA), are also critical. These distances define the usable lengths of the runway and associated areas for various operations, directly correlating with the aircraft performance requirements dictated by the aerodrome's code. Furthermore, the positioning of holding points on taxiways, where aircraft pause before entering an active runway, varies significantly based on the runway's instrument category and aerodrome code, ensuring adequate separation and safety for larger aircraft.
Frequently Asked Questions (FAQs)
What is the ICAO Aerodrome Reference Code?
The ICAO Aerodrome Reference Code is a two-part classification system used globally to categorise aircraft types and match them with suitable aerodrome infrastructure. It helps airport planners and operators determine the minimum design requirements for runways, taxiways, and other facilities based on the characteristics of the largest aircraft they intend to accommodate. The code is published in ICAO Annex 14.
What is a 'critical aircraft'?
A 'critical aircraft' refers to the aeroplane with the highest requirements that an aerodrome is designed to accommodate. Its dimensions (wingspan, outer main gear wheel span) and performance (reference field length) dictate the primary design parameters for the airport's movement and manoeuvring areas, ensuring all regularly scheduled operations are safely supported.
Can an airport with a 4E code ever handle an Airbus A380?
Yes, absolutely. While an Airbus A380 is a Code F aircraft (wingspan greater than 65m), it can operate at an aerodrome with a 4E reference code. This is subject to prior approval from local aviation authorities and the successful completion of a comprehensive safety assessment. This assessment evaluates the aerodrome's suitability and may lead to specific operational procedures or restrictions for the A380 to ensure safety.
Why are these aerodrome codes important?
These codes are vital for ensuring aviation safety and operational efficiency. They provide a standardised framework for airport design and certification, guaranteeing that the physical characteristics of an aerodrome are compatible with the aircraft types that use it. This prevents situations where aircraft might operate on infrastructure that is too small or inadequate, thereby mitigating risks of ground collisions, runway excursions, or other incidents.
Conclusion
The ICAO Aerodrome Reference Code 4E represents a significant capability for airports, allowing them to handle a wide range of large commercial aircraft. However, the system's inherent flexibility, coupled with rigorous safety assessments and regulatory oversight, means that even larger, 'higher code' aircraft can utilise these facilities under controlled conditions. This adaptability is a testament to the meticulous planning and unwavering commitment to safety that underpins modern aviation. While the challenges of accommodating such diverse aircraft types are considerable, the industry's ability to navigate these complexities ensures that airports remain safe, efficient, and capable of supporting the evolving demands of global air travel. Understanding these nuances is key to appreciating the intricate ballet of engineering and regulation that enables millions of safe flights every year.
