Lunar Taxi: A Forgotten Journey to the Moon

When one thinks of a taxi, images of bustling city streets, black cabs, or perhaps even a local minicab service often spring to mind. But imagine a taxi service that operates not across a city, but across the vast expanse of space, ferrying intrepid explorers to a distant, airless destination: the Moon. This seemingly fantastical notion was, in fact, a serious proposition in the late 1960s, conceived by Grumman Aerospace as they looked to expand the capabilities of the iconic Lunar Module (LM) for advanced Apollo missions. While the Apollo programme successfully landed humans on the Moon, the vision for an extended lunar presence, enabled by a fleet of specialised LM derivatives, including the intriguing LM Taxi, remained an unrealised dream.

In the wake of humanity's monumental achievement of reaching the Moon, NASA had initially planned for several more lunar landing missions beyond Apollo 17, which notably splashed down in the Pacific Ocean on December 19, 1972, marking the last time humans walked on the lunar surface. These cancelled missions, Apollos 18, 19, and 20, represented a lost opportunity for deeper lunar exploration. Had lunar expeditions continued, they would undoubtedly have featured significantly increased stay times, longer traverses across the lunar landscape, and the deployment of more sophisticated scientific equipment. It was in this context of forward-thinking exploration that Grumman Aerospace, the primary contractor for the Lunar Module, began to study radical upgrades to their venerable spacecraft.

The LM Taxi Mission: Your Ride to Extended Lunar Stays

At the heart of Grumman’s ambitious proposals for advanced lunar exploration was the concept of dual-launch missions, a significant departure from the single-launch profile of the initial Apollo landings. In this innovative scenario, a logistics vehicle – such as a ‘Truck’ or ‘Shelter’ LM – would be launched first, landing robotically on the Moon with supplies and equipment. Following its successful touchdown, the LM Taxi would then embark on its crucial mission: to ferry two astronauts to the lunar surface as the second leg of this coordinated dual launch.

Outwardly, the LM Taxi would have appeared almost identical to the standard Apollo LM that graced the Moon's surface. However, its slightly different mission necessitated a few subtle, yet vital, modifications. While carrying the same life support provisions as its parent spacecraft, the Taxi was designed for a unique operational profile. Upon landing, the astronauts would meticulously shut down and store the Taxi, transferring their living quarters to the pre-landed logistics vehicle for their planned 14-day stay. This extended duration was a key objective of these advanced missions, allowing for more comprehensive scientific work and exploration.

Crucially, the LM Taxi also incorporated a contingency plan. Should the astronauts deem the primary logistics vehicle unsatisfactory for habitation for any reason, they could return to the Taxi and reside there for the duration of their mission. This backup capability underscored the Taxi’s role as a reliable transport and emergency shelter. To enable its design as a dormant vehicle while the crew occupied the 'Shelter' or 'Truck', the Taxi required specific modifications for thermal control. Its internal equipment would need careful management to maintain an optimal temperature, allowing for a rapid abort if necessary. This included features like window shades and a hatch cover to prevent excessive cooling, along with isotopic heating sources. Furthermore, it would be equipped with advanced monitoring systems to constantly assess its condition, ensuring it remained fully operational. The standard battery power system would also be supplemented by a radioisotope thermoelectric generator, providing a robust and long-lasting power source for its extended dormant periods.

Grumman's Grand Vision: Pushing the Boundaries

Grumman Aerospace saw immense potential in their basic Lunar Module, envisioning it as far more than just a temporary landing craft for two astronauts. They championed the LM as a highly versatile vehicle, capable of flying with astronauts or autonomously as a robotic probe. Its substantial propulsive capability and internal volume, they argued, made it an ideal candidate for a wide array of other missions, both in Earth and lunar orbit, and on the lunar surface itself. Their proposals, likely made in 1968 or early 1969, were presented in a heavily illustrated briefing to NASA, outlining ways to expand several constraints that limited early Apollo missions.

These constraints included the restricted areas of the lunar surface that could be reached, the limited mass that could be landed, and the relatively short duration astronauts could spend on the Moon. Grumman’s solutions were predicated on the assumption that NASA would also make modest improvements to the Saturn V rocket, enhancing its payload capacity, and crucially, pursue dual-launch missions. Engineers claimed that LM derivatives could support missions lasting two months in Earth orbit and at least two weeks on the Moon. They contended that the invaluable experience gained from early LM missions would significantly reduce costs while dramatically increasing mission and scientific objectives, paving the way for a more ambitious future in space.

Beyond the Taxi: A Fleet of Lunar Innovations

The LM Taxi was just one component of a broader portfolio of Lunar Module upgrades proposed by Grumman, each designed to push the boundaries of lunar exploration.

The Humble Beginnings: Apollo's Lunar Module

The original Apollo LM, as flown on missions like Apollos 11 to 14, comprised a descent stage and an ascent stage. The descent stage housed the engine, propellant, landing gear, and the Apollo Lunar Scientific Experiment Package (ALSEP). The ascent stage contained the crew’s life support, other operating subsystems, the engine and propellants for the return to the Command Service Module (CSM), and storage for scientific samples. As designed, it could sustain two astronauts for 48 hours on the Moon, carry a 136-kilogram (300-pound) scientific payload, and return 45 kilograms (100 pounds) of samples.

The Extended LM: A Glimpse of the Future That Was

Of all Grumman's proposed LM upgrades, only one was actually built and flown: the Extended LM. Leveraging experience from initial landings, this modification allowed for an increase in LM payload without enlarging the descent tanks. Starting with Apollo 15, the LM was adapted to carry more mass and operate longer. Notably, it cleverly accommodated the Lunar Roving Vehicle (LRV), folded up in a side compartment of the descent stage, extending astronaut stay times to three days and providing up to 318 kilograms (700 pounds) of scientific equipment, including the LRV itself or Lunar Flying Vehicles (LFVs).

The Augmented LM: More Power, More Payload

The Augmented LM represented another significant leap in capability. By incorporating increased descent propellants, and benefiting from potential Saturn V up-rates (such as the F-1A engines), this LM variant would have greatly increased payload capacity. In a single-launch mode, it could have carried over 900 kilograms (2,000 pounds) of scientific payload for a one-and-a-half-day stay, or more than 450 kilograms (1,000 pounds) for an eight-day mission. In dual-launch scenarios, the Augmented LM would carry more expendables, with scientific payload delivered by a logistics vehicle. Astronauts would then transfer these supplies via lunar rover, connecting them to an external panel on the LM Taxi to enable longer missions.

Logistics & Habitats: Building Lunar Outposts

Central to the extended mission concept were specialised logistics vehicles designed to precede the crewed LM Taxi.

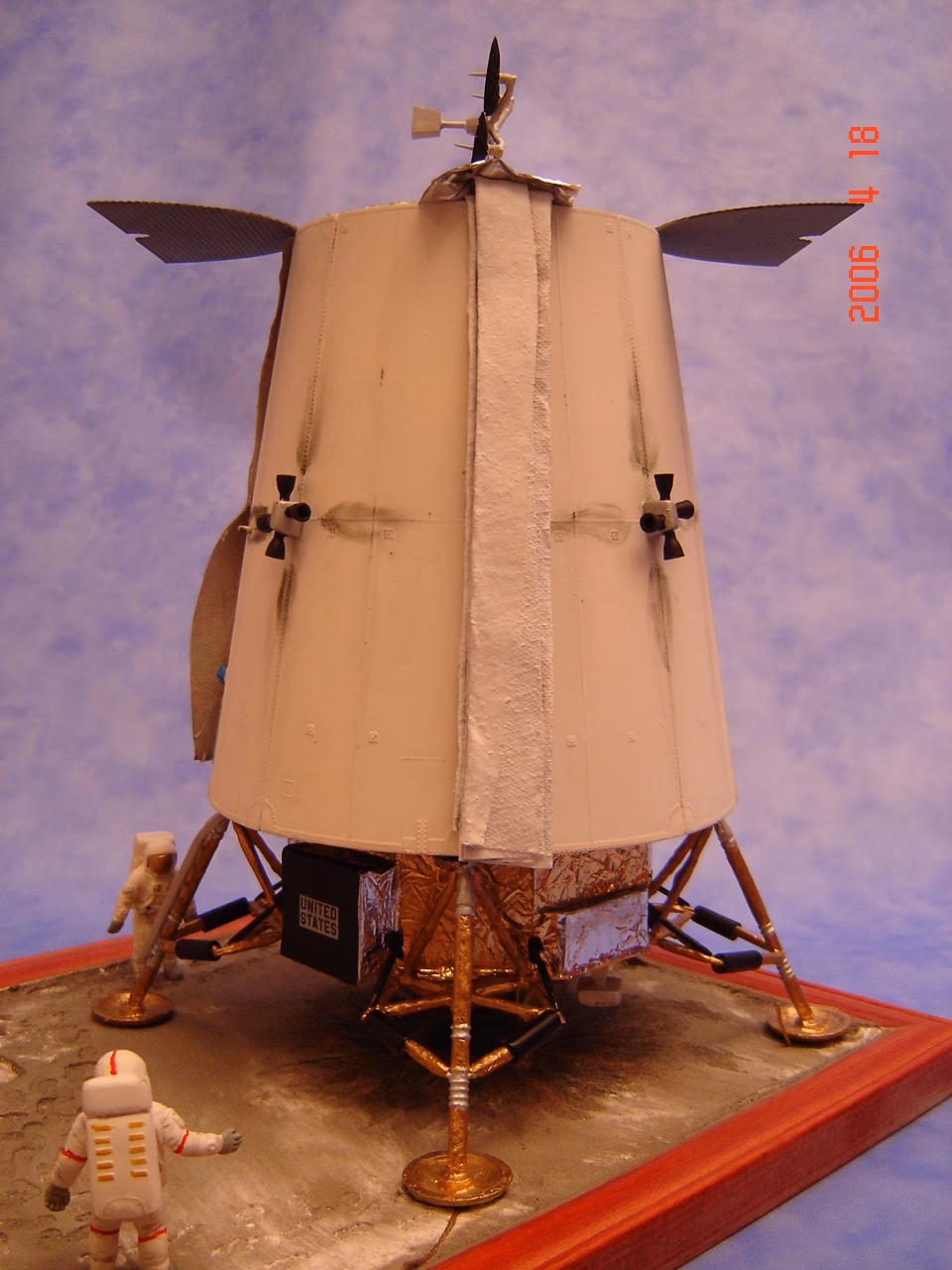

The LM Shelter: A Home Away From Home

The LM Shelter was essentially an Apollo LM stripped of its ascent propulsion system, allowing for a significantly larger internal volume. Designed to land robotically, it could remain dormant on the Moon for up to 60 days before supporting two astronauts for 14 days after their arrival in a Taxi. Without the ascent engine, the Shelter offered more habitable space, featuring special hammocks and an airlock attached to the forward hatch, eliminating the need to depressurise the cabin for lunar surface egress. Its payload could include expendables, mobility aids, a lunar drill, and advanced scientific packages.

The LM Truck: Lunar Cargo Haulers

The LM Truck was conceived as an unmanned lunar lander dedicated to transporting large cargo. Like the Shelter, it was part of a dual-launch mission, preceding the crewed Taxi. Grumman proposed two versions: the first retained some ascent vehicle systems in a central trunk, allowing an astronaut in lunar orbit to update its flight computer for increased landing accuracy. It could carry a crane for deploying equipment. The second, the LM Truck-2, moved all ascent stage components to the descent stage, creating a massive flat platform above for carrying larger cargo, such as a 21.5-cubic-meter (760-cubic-foot) fixed crew living quarters or 4,000 kilograms (8,800 pounds) of payload.

The Lunar Payload Module: Simplified Supply Runs

Representing a minimal modification of the basic LM, the Lunar Payload Module retained the ascent stage structure but removed the propulsion system and unneeded components. This configuration allowed it to hold a 3,040-kilogram (6,700-pound) payload within a 21-cubic-meter (730-cubic-foot) volume. Its mission was similar to other logistics vehicles: to land robotically and provide provisions, expendables, and equipment to resupply the Taxi or replenish astronaut supplies.

The Lunar Base Module: Enhanced Living on the Moon

Similar in mission to the Shelter, the Lunar Base Module also landed robotically and would be visited by astronauts in a Taxi. However, it featured an enlarged, non-propulsive ascent stage with an increased midsection diameter and a rear bulkhead moved back. This provided sufficient internal volume for two beds (rather than hammocks), a radiator to replace the environmental control system sublimator, and power from solar panels. It too could remain dormant for 60 days and support two astronauts for 14 days.

Lunar Mobility: Getting Around on the Surface

To support extended lunar traverses, Grumman also studied various vehicles for improving astronaut mobility.

The Lunar Roving Vehicle (LRV): The Moon Buggy We Know

While Boeing ultimately built the LRV flown on Apollos 15-17, Grumman’s studies included a medium-duty roving vehicle capable of carrying 227 kilograms (500 pounds) and small enough for a single-launch mission. Its battery power allowed for a 27.8-kilometer (15-nautical-mile) sortie, though communications limited its operation radius to 3.7 kilometres.

The Dual-Mode Lunar Roving Vehicle (DLRV): Heavy-Duty Exploration

Grumman’s largest proposed rover, the heavy-duty DLRV, could also carry 227 kilograms (500 pounds) but boasted a 14.8-kilometre (eight-nautical-mile) radius and a 46.3-kilometre (25-nautical-mile) sortie range. Weighing 680 kilograms (1,500 pounds), it would be carried by a robotic logistics spacecraft like the LM Shelter or Truck, with batteries rechargeable from the delivery craft.

The Lunar Flying Vehicle (LFV): A Leap Across the Lunar Landscape

This light-duty vehicle could be carried on a single-launch mission. It would utilise the same propellant as the LM descent engine, meaning residual propellants from the LM could be transferred. The LFV could carry one astronaut with 168 kilograms (370 pounds) of scientific equipment, or two astronauts on a rescue mission.

Free-Flying LM Derivatives: Eyes in the Sky

Grumman also explored modifying the LM ascent stage for various free-flying missions, performing science or other tasks in Earth or lunar orbit, without landing.

The Lunar Reconnaissance Module: Mapping the Moon

Designed to break the limitation of Apollo's equatorial landing sites, the Lunar Reconnaissance Module would use an LM descent stage to place an Apollo CSM and a modified LM into polar orbit around the Moon. The descent stage would be jettisoned, and the ascent stage, equipped with extensive instrumentation (photo-mapping, geochemical, electromagnetic), would survey the lunar surface, subsurface, and near-lunar environment for 14 days in a shirt-sleeve environment.

The LM Laboratory: An Orbital Science Hub

A radical proposal, the LM Laboratory was envisioned as a heavily-equipped orbital science platform. Stripped of its propulsion systems and landing gear, but retaining CSM docking compatibility, it could operate in Earth or lunar orbit, provisioned to sustain two astronauts for 45 days. Its array of sensors (radiometers, spectrometers, cameras, X-ray sensors) could be used for meteorology, astronomy, Earth resources, lunar survey, bioscience, and engineering technology.

LM/Apollo Telescope Mount & Stellar ATM: Unveiling the Cosmos

Grumman proposed modifying the LM to carry solar instruments, replacing the descent stage with the Apollo Telescope Mount (ATM) structure. This would include solar astronomy equipment, solar arrays, and control moment gyroscopes, capable of gathering solar data and operating for up to 51 days. A variant, the LM/Stellar Apollo Telescope Mount, would replace the solar telescope with a large aperture stellar optical telescope for ultraviolet spectrum observations of celestial objects, capable of robotic or human-attended operation, and able to detach for increased stabilisation.

The Rescue LM: A Lifeline in Orbit

Utilising the LM’s two-stage main propulsion system, redundant reaction control system, and versatile guidance, Grumman proposed a Rescue LM. With minimal modifications, this vehicle would offer unique in-orbit manoeuvring capabilities, allowing for intercept and rendezvous with other spacecraft for purposes like personnel rescue, spacecraft inspection, or repair.

Why These Lunar Taxis Never Left the Hangar

Despite the ingenuity and potential of Grumman’s proposals, most of these ambitious LM derivatives never progressed beyond the drawing board. While many reflected relatively straightforward modifications that could have been developed within a few years, they were not inexpensive, though certainly lower risk and cost than other proposed large lunar cargo landers.

Several factors contributed to their ultimate demise. Some key NASA officials harboured skepticism that a vehicle designed for such a specific, narrow mission like the original LM could be effectively adapted for such a wide range of other uses, particularly in Earth orbit or for purely scientific missions. While the LM certainly showed potential for expanded lunar roles, arguing for its versatility in Earth orbit stretched the bounds of credibility for some.

However, the primary and most significant reason these proposals were never adopted was, quite simply, money. By the mid-1960s, NASA’s budget was already in decline, and the agency’s leadership had no reason to anticipate large budgets for ambitious goals once the Apollo program concluded. Apollo was fundamentally driven by the Cold War imperative to beat the Soviet Union to the Moon. Once that goal was achieved with Apollo 11, the American political leadership saw no further need to commit such enormous financial resources to the space program. Apollos 18, 19, and 20 were cancelled, despite much of their hardware already being completed and their reliance on the existing, slightly upgraded LM design. By the time of the Nixon Administration, even Apollos 15–17 faced cancellation threats, only being saved after arguments were made about the message their cancellation would send to the world regarding America's diminishing ambitions. To fly Apollos 21 and beyond, and to pursue the dual-launch missions and exotic LM derivatives, would have required restarting the highly capable, yet highly expensive, Saturn V and Apollo production lines. As Apollo rapidly drew to a close, the opportunities for expanding lunar exploration, and the visionary future of lunar taxis, simply vanished.

Comparative Table: Lunar Module Derivatives at a Glance

Frequently Asked Questions (FAQs)

What was the primary goal of the LM Taxi mission?

The primary goal of the LM Taxi mission was to ferry two astronauts to the Moon as the second part of a dual-launch mission. It would land near a pre-positioned logistics vehicle (like a Shelter or Truck LM) which would have already delivered supplies and served as the primary habitat for an extended stay of up to 14 days on the lunar surface.

How did the LM Taxi differ from the standard Apollo Lunar Module?

Outwardly, the LM Taxi was largely identical to the standard Apollo LM. However, it featured subtle internal modifications necessary for its unique mission profile. These included enhanced thermal control systems (like window shades and a hatch cover), isotopic heating sources to maintain internal temperature during dormant periods, health monitoring systems, and a radioisotope thermoelectric generator to supplement battery power for longer durations.

Were any of Grumman's LM upgrades actually built?

Yes, only one of Grumman's LM upgrades was actually built and flown: the Extended LM. Starting with Apollo 15, this modified LM was capable of carrying more mass and operating on the lunar surface for longer periods than the initial Apollo missions. It notably carried the Lunar Roving Vehicle (LRV).

Why weren't these advanced lunar missions pursued?

These advanced lunar missions and LM upgrades were not pursued primarily due to budgetary constraints and a shifting political landscape. After achieving the primary goal of beating the Soviet Union to the Moon, the political will and funding for ambitious, costly follow-on missions diminished rapidly. NASA's budget decreased, and restarting the Saturn V and Apollo production lines for new missions was deemed too expensive, leading to the cancellation of even planned Apollo missions (18, 19, 20).

What other types of vehicles did Grumman propose based on the Lunar Module?

Grumman proposed a wide array of LM-derived vehicles, showcasing the LM's perceived versatility. Beyond the LM Taxi, these included logistics vehicles like the LM Shelter (a lunar habitat), LM Truck (unmanned cargo lander), Lunar Payload Module, and Lunar Base Module. They also proposed mobility aids such as enhanced Lunar Roving Vehicles and a Lunar Flying Vehicle, and even free-flying LM derivatives for orbital science and reconnaissance, like the Lunar Reconnaissance Module, LM Laboratory, and even LM-based telescope mounts and rescue vehicles.

The vision of Grumman Aerospace for the Lunar Module represented a profound leap in potential lunar exploration. From the dedicated LM Taxi designed to deliver astronauts to extended lunar outposts, to a comprehensive fleet of cargo haulers, habitats, rovers, flyers, and even orbital laboratories, these concepts painted a picture of a permanent human presence on the Moon. While the reality of budget cuts and shifting political priorities ultimately meant these innovative designs remained largely on paper, the ambition and innovation behind them continue to inspire. They serve as a powerful reminder of the paths not taken in space exploration, and the incredible versatility inherent in what was, at its core, a highly specialised vehicle: the lunar taxi that never quite got its full fare.
