Mastering Bar Bending Schedules: Your Free Excel Guide

The Backbone of Reinforcement: Understanding Bar Bending Schedules

In the intricate world of civil engineering and construction, precision is paramount. Every element, from the foundation to the highest beam, must be accounted for, measured, and executed flawlessly. Among the most critical components in reinforced concrete structures are the steel reinforcement bars, or rebars. Managing these steel elements efficiently is where the Bar Bending Schedule (BBS) comes into play. This document is not merely a list; it's a detailed blueprint for the steelwork, ensuring that the right amount of steel, in the correct shape and size, is used exactly where it's needed. Whether you are a seasoned professional in London or a student in Manchester, understanding and utilising a BBS is fundamental to successful project delivery. This guide will delve into the purpose, creation, and importance of BBS, and crucially, offer you a free, downloadable Excel sheet to kickstart your own BBS preparation.

What Exactly is a Bar Bending Schedule (BBS)?

A Bar Bending Schedule, or BBS, is a comprehensive document that details every single reinforcement bar required for a reinforced concrete structure. It acts as an organised inventory, specifying the type of steel, its diameter, its unique mark (or identification), its exact location within the structure (e.g., main reinforcement for a beam, distribution steel for a slab), its length before any bending, and the details of any bends or hooks. Essentially, it translates the complex reinforcement details shown on structural drawings into a practical, actionable list for the fabrication and placement of steel bars. Think of it as the ultimate steel shopping and cutting list for your construction project.

The Indispensable Purpose of a BBS

The meticulous preparation of a BBS serves multiple critical functions throughout the construction lifecycle. Its primary aims are:

• Optimised Material Usage: By calculating the exact length and number of bars required, a BBS minimises wastage of expensive steel. This directly impacts the project's budget and environmental footprint.
• Accurate Cost Estimation: With precise quantities of steel determined, cost estimators can develop reliable budgets for materials and labour, preventing cost overruns.
• Simplified Cutting and Bending Operations: The detailed bending information within a BBS provides clear instructions to the steel fabricators, streamlining the cutting and bending process and reducing errors.
• Smooth Inspection and Verification: Site supervisors and quality inspectors can easily cross-reference the installed reinforcement against the BBS, ensuring compliance with design specifications and standards.
• Efficient Project Management: A well-prepared BBS aids in the planning and scheduling of rebar procurement, fabrication, and installation, contributing to overall project timelines.

To see how these purposes are met in practice, you can download our free BBS Excel sheet and explore its structure.

Why is a BBS Essential? Global Applications

The utility of a Bar Bending Schedule transcends geographical boundaries and project types. Its importance is recognised globally:

In the United Kingdom and Internationally:

In the UK, the preparation of BBS is often guided by standards such as BS 8666:2005. This standard provides clear methodologies for detailing and scheduling reinforcement. Projects ranging from intricate bridge construction and major infrastructure developments to high-rise residential and commercial buildings rely heavily on accurate BBS to ensure compliance with stringent building codes and to manage large quantities of steel effectively. The focus is on precision, safety, and structural integrity, all of which are directly supported by a robust BBS.

In India and Other Regions:

In India, BBS preparation adheres to guidelines set by the Bureau of Indian Standards (BIS), primarily IS 2502 (Code of practice for bar bending and fixing) and IS 456:2000 (Code of practice for plain and reinforced concrete). It is an indispensable tool for almost all construction projects, from small residential extensions to large commercial complexes. Contractors, site engineers, quantity surveyors, and even students use BBS to control steel consumption, reduce wastage, and manage labour productivity. The emphasis here is on practical application and cost-effectiveness, making BBS a daily necessity for site execution.

Regardless of your location or the specific standards you follow, if reinforced concrete is involved, a BBS is a non-negotiable element for efficient and accurate construction. To get hands-on experience, simply download our free BBS Excel sheet.

How to Prepare a Bar Bending Schedule: A Step-by-Step Approach

Creating a BBS might seem daunting at first, but breaking it down into manageable steps makes it straightforward:

1. Thoroughly Review Structural Drawings: The foundation of any BBS is the set of structural reinforcement drawings. You must carefully study these drawings to identify all the different types of reinforcing bars, their shapes (straight, bent, cranked, etc.), diameters, spacing, and their exact locations within the structural elements (beams, columns, slabs, footings, walls). Pay close attention to details like hook lengths and the number of bars specified for each section.
2. Establish the BBS Columns: A typical BBS will include several key columns to capture all necessary information. These usually include:
   • Field Description: A brief description of the component (e.g., 'Beam Bottom Reinforcement', 'Column Stirrups', 'Slab Top Mesh').
   • Bar Mark: A unique identifier for each type of bar, often corresponding to labels on the drawings.
   • Bar Shape: A code or sketch indicating the bending shape of the bar (e.g., 'U', 'L', 'Crank', 'Hook').
   • Diameter: The nominal diameter of the steel bar in millimetres (e.g., 8mm, 10mm, 12mm TMT bar).
   • Length: The total length of the bar before any bending is applied. This is crucial for procurement.
   • Cutting Length: The actual length of the bar required after accounting for the deductions or additions due to bending. This is where accuracy is vital.
   • Number of Bars: The total count of this specific bar type required for the element or the entire project.
   • Weight: The total weight of the bars, typically calculated using the formula: Weight per meter = (Diameter² / 162) kg/m. The total weight is then (Weight per meter × Cutting Length × Number of Bars) / 1000 (to convert kg to tonnes if needed).

To save you the effort of setting up these columns and formulas from scratch, we highly recommend you download our free BBS Excel Sheet. It comes pre-formatted with all essential columns and built-in calculation formulas.

Understanding Cutting Length Calculations

The 'Cutting Length' is a critical value in the BBS. Bending reinforcement bars changes their effective length due to the material's ductility. Different types of bends require specific adjustments:

• For 90° Bends: When a bar is bent at a 90-degree angle, a certain length is added to the straight portion due to the bend. This is typically calculated as 2 times the diameter of the bar multiplied by the number of 90° bends. The formula for the cutting length is: Total Length = Sum of straight lengths + (2 × Diameter × Number of 90° bends).
• For 135° Hooks/Bends: Similar to 90° bends, 135° bends (often used for stirrups or to provide anchorage) also add length. The standard allowance is usually 3 times the diameter of the bar multiplied by the number of 135° bends. The formula becomes: Total Length = Sum of straight lengths + (3 × Diameter × Number of 135° bends).
• For Stirrups: Stirrups are a common example where multiple bends are present. For a typical rectangular stirrup with 90° hooks at each end, the cutting length is calculated based on the dimensions of the stirrup (let's say side 'A' and 'B') and the hook allowance. A common formula is: Cutting Length = (2A + 2B) + (2 × 10 × dia for hooks). If 135° hooks are used, the allowance is typically 8 times the diameter per hook, so: Cutting Length = (2A + 2B) + (2 × 10 × dia for hooks). (Note: The exact hook length and allowance can vary based on standards and project specifications, often expressed as a multiple of the bar diameter).

Manually calculating these can be tedious and prone to errors. Our free BBS Excel Sheet has these complex formulas pre-programmed, allowing you to simply input the dimensions and bar diameter to get accurate cutting lengths instantly. Don't miss out – download it today!

Illustrative Example: Calculating Stirrups for a Beam

Let's consider a practical example. Suppose you have a beam that is 6.8 meters long (6800 mm), and the structural drawings require stirrups at a spacing of 150 mm centre-to-centre (c/c) along this beam. You also need to account for the stirrup's shape and hooks.

The calculation for the number of stirrups is straightforward:

Number of Stirrups = (Total Length of Beam / Spacing) + 1

Number of Stirrups = (6800 mm / 150 mm) + 1

Number of Stirrups = 45.33 + 1

Number of Stirrups = 46.33

Since you cannot have a fraction of a stirrup, you would round this up to the nearest whole number, meaning you need 47 stirrups for this beam. This number, along with the dimensions and hook details of the stirrup, would then be entered into the BBS. Our Excel template automates this calculation and the subsequent weight calculation, making your task significantly easier.

Who Benefits from Using a BBS?

The Bar Bending Schedule is a vital document used by a wide spectrum of professionals in the construction industry, each relying on its accuracy for their specific roles:

• Site Engineers: They use the BBS as a direct guide for the cutting and bending of rebar, ensuring that the correct bars are fabricated according to specifications before being fixed in place.
• Contractors: For contractors, the BBS is essential for accurately estimating the total steel required for a project, managing procurement, and controlling costs.
• Quantity Surveyors: They rely on the BBS to prepare Bills of Quantities (BOQ) and for precise cost management and tendering processes.
• Steel Fabricators: The BBS provides the precise instructions needed for cutting steel bars to the correct lengths and bending them into the required shapes, ensuring efficient workshop operations.
• Clerks of Works/Inspectors: These professionals use the BBS to verify that the reinforcement work being carried out on-site complies with the design drawings and specifications.
• Students: For civil engineering students, learning to prepare and interpret a BBS is a fundamental skill that provides practical insight into site-level calculations and construction processes.

Every professional involved in reinforced concrete construction finds value in a precise BBS. To streamline your tasks, consider downloading our free BBS Excel Sheet.

International Standards Guiding BBS Preparation

The preparation of Bar Bending Schedules is often governed by established international and national standards to ensure consistency and quality:

• BS 8666:2005 (UK): This British Standard provides comprehensive guidance on the scheduling, bending, and fixing of steel reinforcement. It specifies the format for BBS, detailing requirements for bar marks, dimensions, and bending allowances.
• IS 2502 & IS 456:2000 (India): In India, IS 2502 offers a code of practice for bar bending and fixing, including methods for calculating cutting lengths and detailing. IS 456:2000, the primary code for plain and reinforced concrete, also contains provisions related to reinforcement detailing that influence BBS preparation.

Our downloadable BBS Excel Sheet is designed to be compliant with the general principles of these standards, making it a versatile tool for users across different regions. Whether you adhere to BS or IS codes, you can leverage this resource by downloading it for free.

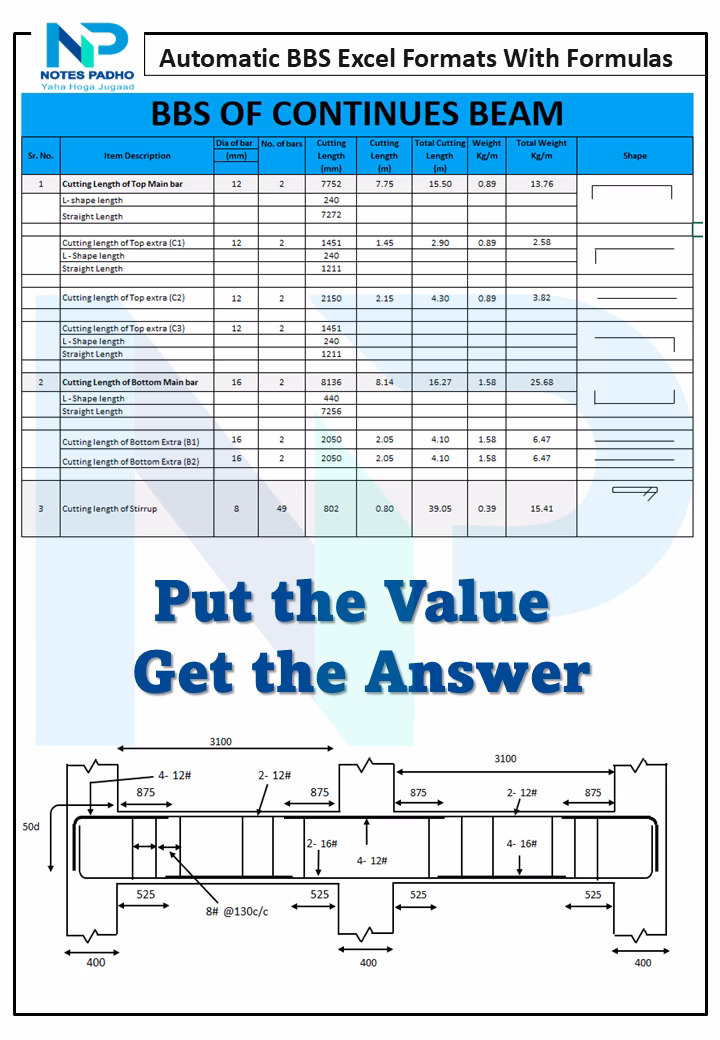

What You Get with Our Free BBS Excel Sheet

When you download our complimentary Bar Bending Schedule Excel template, you gain access to a powerful tool designed for efficiency and accuracy:

• Pre-filled Column Headers: All essential columns are already set up, saving you time and ensuring you don't miss any critical information.
• Integrated Cutting Length Formulas: Complex calculations for bending allowances are built-in, eliminating manual errors and speeding up the process.
• Automatic Quantity & Weight Calculations: The sheet automatically calculates the total number of bars and their total weight based on your inputs, simplifying procurement and costing.
• Separate Sheets for Different Elements: For better organisation, the template often includes dedicated sheets for common structural elements like beams, columns, slabs, and footings.
• Lightweight and User-Friendly: The file is optimised for performance, making it easy to use on both desktop and mobile devices.

This template is perfect for beginners learning the ropes and experienced professionals looking for a reliable, ready-to-use tool. And the best part? It’s completely free!

A Must-Learn Skill for Students: Mastering BBS

For civil engineering students, understanding and being able to prepare a Bar Bending Schedule is not just beneficial; it's essential for a successful academic and professional journey:

• Boosts Interview Performance: Employers often ask about BBS during interviews to gauge a candidate's practical understanding of construction processes.
• Enhances Internship Reports: Including a well-prepared BBS in your internship reports demonstrates initiative and practical knowledge.
• Aids in Project Cost Estimation: This skill is invaluable for understanding the financial aspects of construction projects.
• Crucial for Final Year Projects/Thesis: Many final-year projects and theses involve structural design and analysis, where BBS preparation is a key component.

Don't fall behind. Start practicing with our user-friendly template by downloading it for free today.

Pro Tips for Effective BBS Preparation

To maximise the effectiveness of your Bar Bending Schedule, consider these professional tips:

• Organise by Location: Group your bars logically, either by floor, by structural element (e.g., all column bars together, all beam bars together), or by unit. This improves clarity and ease of use on site.
• Double-Check Everything: Before any cutting commences, meticulously verify the bar diameter, lengths, and bending details against the drawings and the BBS. A small error here can have significant consequences.
• Integrate into Reports: Include your BBS sheets as appendices in site progress reports or BOQs to provide a clear record of steel usage and requirements.
• Print Separately: Always print your BBS as a standalone document. Avoid attaching it directly to design drawings, as it can become cumbersome and may get lost or damaged.
• Maintain Records: Keep both digital and hard copies of your BBS for future reference, project audits, or dispute resolution.

And remember, a good backup strategy is always wise! You can always revisit this page to download the free BBS Excel Sheet again if needed.

Conclusion: Embrace BBS for Smarter Construction

The Bar Bending Schedule is far more than a mere addendum to structural drawings; it is a powerful tool that directly contributes to cost savings, time efficiency, and the reduction of costly errors on site. By diligently preparing a proper BBS, you actively:

• Reduce Rebar Wastage: Minimising off-cuts and ensuring efficient use of steel directly impacts project profitability.
• Improve Steel Estimation Accuracy: Precise quantities lead to accurate material procurement and budgeting.
• Align Site Work with Structural Intent: Ensuring the correct steel is placed in the correct location guarantees the structural integrity and performance of the building.

Whether your projects are located in Manchester, Birmingham, or anywhere else in the world, adopting the practice of using a BBS will significantly enhance your construction workflow. Now that you understand its immense value, it's time to put it into practice.

Ready to Elevate Your Construction Workflow?

Take the first step towards more efficient and accurate steel management. Click the link below to download our comprehensive Bar Bending Schedule Excel Sheet for FREE and start transforming your project execution today!

[Link to Download BBS Excel Sheet Free]

Share Your Thoughts and Feedback

We hope you found this guide to Bar Bending Schedules informative and helpful. Your feedback is invaluable to us. Please share your thoughts in the comments below, or pass this resource along to fellow engineers, contractors, and students who could benefit from it. Let us know how the Excel sheet works for your projects!

Stay connected with us for more practical civil engineering templates, tools, and insightful tutorials!
