Boeing 777-200ER: A Deep Dive into the Long-Haul Workhorse

When discussing the titans of long-haul aviation, the Boeing 777-200ER consistently emerges as a pivotal aircraft, renowned for its range and efficiency. While some might mistakenly refer to an 'Airbus 747-300', it's crucial to clarify that the 747-300 is, in fact, a Boeing aircraft. The Boeing 777-200ER was specifically designed to offer airlines, such as KLM, a more modern and efficient replacement for older models like the 747-300, positioning itself as a direct competitor to aircraft like the Airbus A340-300. This article will delve into the intricacies of the Boeing 777-200ER, exploring its design, capabilities, and operational footprint, based on detailed specifications.

The Boeing 777-200ER: A Workhorse of the Skies

The Boeing 777-200ER, often referred to simply as the 'Triple Seven', is a wide-body airliner that has revolutionised long-distance air travel since its first flight on 7 October 1996. It entered operational service with British Airways in February 1997, quickly establishing itself as a favourite among major global carriers. Produced in Everett, United States of America, a total of 422 aircraft have rolled off the production line. Initially designated as the -200IGW (Increased Gross Weight), the -200ER variant boasts a significantly longer range and is powered by two robust General Electric GE90-92B turbofan engines, each delivering immense thrust. Its adoption by primary users such as KLM, British Airways, Singapore Airlines, American Airlines, Emirates, and many others underscores its reliability and versatility in the demanding world of international aviation.

Engineering Marvel: Dimensions and Design

The Boeing 777-200ER is a testament to modern aerospace engineering, featuring a cantilever low-wing monoplane design with retractable landing gear and a nose wheel. Its dimensions are substantial, reflecting its capacity for long-haul routes: a wingspan of 60.93 metres, an overall length of 63.73 metres, and a height of 18.44 metres. The fuselage itself measures 61.84 metres in length with an exterior width of 6.2 metres, contributing to a spacious cabin. The wing area spans 427.8 square metres, meticulously designed with a tapered multi-cellular fail-safe structure. These wings are crafted from improved 2324 and 7150 aluminium alloy stressed skin, complemented by carbon-fiber-reinforced polymer composite material wing surfaces and Kevlar fairings, ensuring both strength and reduced weight. The advanced wing design incorporates Fowler-type double-slotted trailing edge flaps and full-span slotted leading edge flaps (slats), along with spoilers and airbrakes, to provide exceptional lift and control characteristics. The airfoil, a Boeing supercritical cross-section, contributes to its aerodynamic efficiency, with an average thickness/chord ratio of 10.0% and a sweep angle of 31.6 degrees at the three-quarter chord. Fuel tanks are strategically integrated within the wings and fuselage, optimising weight distribution and fuel capacity.

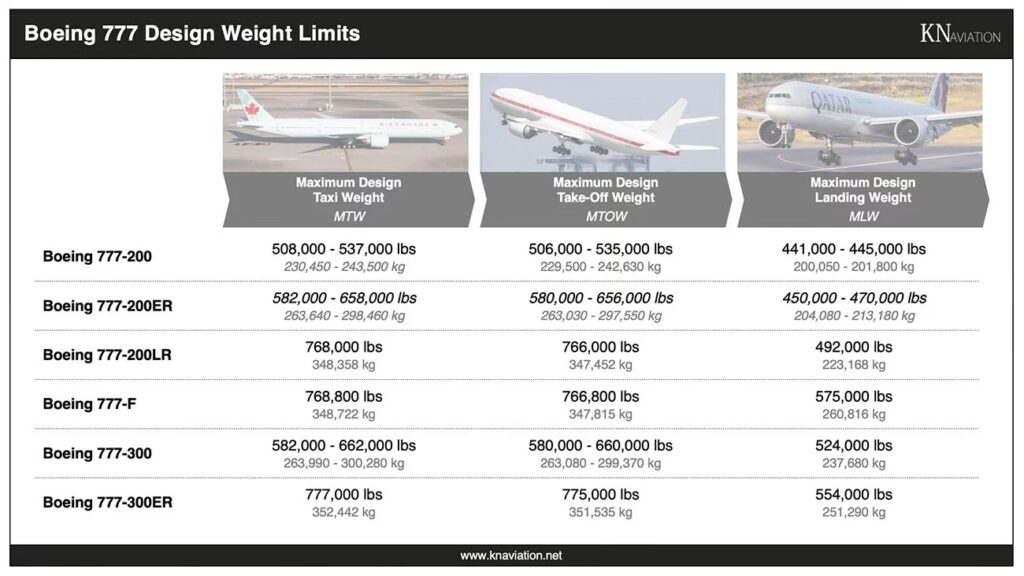

A detailed breakdown of the aircraft's weight distribution highlights the meticulous design process. The total weight of the propulsion system, including the two GE90-92B engines, thrust reversers, and cowlings, comes in at approximately 19,404 kg. The fuselage structure, encompassing the aluminium frame, covering, floor beams, and cabin furbishing, accounts for a significant 52,282.3 kg. The wings, a complex assembly of ribs, spars, fuel tanks, and flight control surfaces, weigh around 42,863 kg. Even the landing gear, with its 12 main wheels and 2 nose wheels, hydraulic disc brakes, and robust shock absorbers, contributes 12,037.1 kg to the overall structure. These detailed weight calculations underscore the complexity and precision involved in constructing such a sophisticated aircraft.

Power and Performance: Reaching New Horizons

Equipped with two General Electric GE90-92B turbofan engines, the Boeing 777-200ER delivers a maximum total take-off power of 806.0 KN. This power enables impressive performance metrics. The aircraft can achieve a maximum operating Mach number (Mmo) of 0.86 (945 km/hr) at 8500 metres, with a maximum cruising speed of 892 km/hr (Mach 0.85) at 11890 metres. Its economic cruising speed is slightly lower at 875 km/hr (Mach 0.84), designed for optimal fuel efficiency. The service ceiling, the maximum altitude at which the aircraft can maintain level flight, is an impressive 13,100 metres.

One of the defining characteristics of the 777-200ER is its exceptional range. With maximum fuel and at maximum take-off weight (MTOW), it can travel up to 16,205 km. Its ferry range, with two crew and zero payload, extends even further to 17,847 km, showcasing its ability to traverse vast distances. The aircraft's fuel capacity is substantial, holding 171,160 litres (134,361 kg) of fuel, which translates to an economic cruise fuel consumption of approximately 7,092.9 kg per hour. This efficiency allows for remarkable range capabilities, making it ideal for long-haul routes across continents.

Take-off and landing performance are also critical. The take-off decision speed (V1) is 288 km/hr, with a lift-off speed (VLOF) of 317 km/hr. At MTOW, the FAR Take-off runway length required at sea-level is approximately 2,890 metres. For landing, at its maximum landing weight of 208,700 kg, the FAA approved landing field length is 1,626 metres, aided by thrust reversers. The aircraft's low wheel pressure allows it to operate even from unpaved runways with a medium subgrade strength, demonstrating its robustness and adaptability.

Key Performance Metrics of the Boeing 777-200ER

Passenger Experience and Cabin Comfort

The Boeing 777-200ER is designed to offer a comfortable and efficient passenger experience. A typical two-class configuration accommodates 345 passengers: 30 in business class and 315 in economy-class, with an average seat pitch of 31 inches (78.7 cm) in economy. For high-density operations, the aircraft can seat up to 418 passengers, primarily in a 10-abreast configuration, with a slightly reduced pitch of 30.4 inches (77.1 cm). The cabin volume, excluding the flight deck, is 510 cubic metres, with the passenger compartment alone occupying 317 cubic metres. The maximum cabin width is 5.86 metres, and the length is 43.92 metres, providing ample space. Facilities include 10 lavatories and 13 galleys, ensuring passenger needs are met throughout long flights. Modern amenities such as individual entertainment screens (345 of them in a typical configuration) enhance the in-flight experience. The total belly baggage/cargo hold volume is 193.0 cubic metres, capable of accommodating 32 LD3 containers, plus additional bulk cargo, highlighting its impressive cargo carrying capability alongside passengers.

Safety and Operational Robustness

Safety is paramount in aircraft design, and the 777-200ER incorporates numerous features to ensure passenger and crew well-being. The aircraft is designed for a rapid evacuation time, capable of evacuating 418 passengers in just 51 seconds. Essential safety equipment includes 16 hand fire extinguishers, a cockpit voice recorder (CVR) and flight data recorder (FDR) for accident investigation, oxygen masks and generators, and 8 emergency evacuation slides. The pressurisation system maintains sea-level conditions up to 6400 metres and an equivalent of 2440 metres at 12200 metres, ensuring passenger comfort and safety at high altitudes. The cabin air is refreshed every 2.9 minutes, contributing to a healthy environment.

The avionics suite is highly advanced, featuring dual digital Flight Management Systems (FMS) for navigation and autopilot, a CAT IIIb auto-landing system for low-visibility operations, and an Electronic Flight Instrument System (EFIS) with Rockwell Collins CRT screens. Critical systems like the ground proximity warning system (GPWS) and engine monitoring system (ECAM) further enhance situational awareness and safety. The triple redundant 207-bar hydraulic system and three engine-driven 90kVA 400 Hertz electricity generators provide robust power and control. The aircraft is designed for a technical life of 16 years, with an expected total flying hours of 84,120, and a remarkable average flight hours till crash of 10.65 million hours, underscoring its inherent safety and reliability.

The Economics of Long-Haul Travel

Operating an aircraft of the 777-200ER's calibre involves significant costs, yet its efficiency makes it a viable option for airlines. The list price for a 777-200ER in 2023 was approximately 353 million USD. Direct operating costs (DOC) per hour are estimated at 19,514 EUR. Fuel is a major component, with consumption at economic cruise speed costing around 5,421 EUR per hour. Crew costs are about 1,650 EUR per hour. Maintenance costs are substantial, with engine maintenance alone estimated at 3,301.6 EUR per hour, while wing and fuselage maintenance contribute 150.6 EUR and 45.27 EUR per hour respectively. Insurance adds another 153 EUR per hour. These figures highlight the substantial investment and ongoing expenditure required to operate such a sophisticated piece of machinery, balanced by its revenue-generating potential on popular long-haul routes.

For passengers, the cost per seat for a 1000km flight in a typical two-class seating configuration is around 59.58 EUR, or 52.34 EUR for high-density seating, demonstrating economies of scale. Airport fees, such as take-off and landing fees, and passenger service charges, also contribute to the final ticket price. Despite these costs, the 777-200ER's ability to carry a large number of passengers and significant cargo over long distances makes it an economically attractive choice for airlines focused on long-haul network expansion.

777-200ER vs. Its Peers: A Brief Context

As mentioned, the Boeing 777-200ER was conceived, in part, as a replacement for older wide-body aircraft such as the Boeing 747-300 for airlines like KLM, and as a direct competitor to the Airbus A340-300. While specific comparative data for the 747-300 or A340-300 is not provided in the source material, the very existence of the 777-200ER points to a significant shift in aircraft design philosophy towards twin-engine, long-range capabilities, driven by ETOPS (Extended-range Twin-engine Operational Performance Standards) certification. The 777-200ER's emphasis on twin-engine efficiency, advanced avionics, and passenger comfort reflects a newer generation of aircraft designed to meet the evolving demands of global air travel more effectively than its quad-engine predecessors or contemporary competitors.

Frequently Asked Questions (FAQs) about the Boeing 777-200ER

Q1: What is the primary role of the Boeing 777-200ER?
A1: The Boeing 777-200ER is primarily a wide-body airliner designed for long-haul routes, capable of carrying a significant number of passengers and cargo across vast distances.

Q2: How many passengers can the 777-200ER typically accommodate?
A2: In a typical two-class configuration, the 777-200ER seats 345 passengers (30 business, 315 economy). For high-density layouts, it can accommodate up to 418 passengers.

Q3: What is the maximum range of the Boeing 777-200ER?
A3: With maximum fuel and at maximum take-off weight, the Boeing 777-200ER has a range of 16,205 km (approximately 8,750 nautical miles).

Q4: What engines power the Boeing 777-200ER?
A4: The 777-200ER is powered by two General Electric GE90-92B turbofan engines.

Q5: Can the Boeing 777-200ER operate from unpaved runways?
A5: Yes, due to its low wheel pressure and robust landing gear design, the 777-200ER can operate from unpaved runways with a medium subgrade strength.

In conclusion, the Boeing 777-200ER stands as a formidable achievement in aviation, balancing impressive range and capacity with advanced engineering and operational efficiency. Its design, from the sophisticated wing structure to its comprehensive safety systems and passenger-focused cabin, demonstrates a commitment to excellence in long-haul air travel. While it replaced older models and competed with others, its detailed specifications reveal an aircraft meticulously crafted for global connectivity and enduring performance, making it a true backbone of modern airline fleets worldwide.
