Understanding Taxiway Holding Points

The Crucial Role of Holding Points in Airfield Operations

For anyone involved in aviation, whether as a pilot, air traffic controller, or even an enthusiast, understanding the intricacies of airfield operations is paramount. One often-encountered term, yet sometimes vaguely understood, is the 'holding point'. These designated locations are critical for maintaining safety and order on the ground, preventing runway incursions, and ensuring efficient aircraft movement. This article delves into the world of taxiway holding points, exploring their definition, purpose, different classifications, and the specific nuances that govern their use.

What Exactly is a Holding Point?

At its core, a holding point is a precisely defined location on an aerodrome where aircraft and vehicles are instructed to stop and wait for clearance from Air Traffic Control (ATC) before proceeding. This clearance is essential before entering an active runway, crossing an active runway, or proceeding beyond a certain point on the taxiway. The term 'holding point' is widely used globally, stemming from International Civil Aviation Organization (ICAO) standards.

In the United States, the Federal Aviation Administration (FAA) uses slightly different terminology, often referring to 'holding points' in the context of ICAO standards. However, the fundamental concept remains the same: a designated spot to halt and await ATC instructions. The FAA's internal manual refers to it as an ICAO term for a visual or other specified holding point, often in the sky, but on the ground, it translates to these specific ground positions.

The purpose of a holding point is to protect active runways from unauthorized incursions. An aircraft positioned beyond a holding point, even if technically still on the taxiway surface, is considered by ATC to be occupying the runway. This means no other aircraft can be cleared for takeoff or landing until the first aircraft has fully vacated the runway and is clear of the holding point.

Why the Need for Specific Holding Points?

The complexity of modern airports, with multiple intersecting taxiways and runways, necessitates clear demarcation of where aircraft must stop. Several factors contribute to the establishment of holding points:

• Runway Protection: The primary reason is to prevent collisions by ensuring aircraft do not enter an active runway without explicit clearance.
• ILS Critical/Sensitive Areas: For airports equipped with Instrument Landing Systems (ILS) or Microwave Landing Systems (MLS), specific holding points are designated to protect the sensitive areas where these signals could be affected by the presence of aircraft or vehicles. This leads to the concept of different categories of holding points.
• Intersection Departures: When runways are shortened for operational reasons (e.g., to allow for shorter takeoffs), specific holding points are established at these intersection points.
• Traffic Flow Management: Holding points help controllers manage the flow of aircraft on the ground, preventing congestion and ensuring orderly movement.

Types of Holding Points and Their Markings

ICAO sets standards for airfield signage and markings, which are crucial for identifying holding points. These are primarily categorized by their function and the type of runway they protect.

Mandatory Instruction Signs

These signs convey essential information that pilots and vehicle drivers must adhere to. They have white text on a red background and indicate locations beyond which an aircraft may not proceed without ATC authorization.

• Runway Designation Signs: These identify the runway at the holding point.
• Category I, II, or III Holding Position Signs: These signs are specifically for holding points related to runways with different instrument approach capabilities. The sign will display the runway designator followed by 'CAT I', 'CAT II', or 'CAT III' as appropriate.

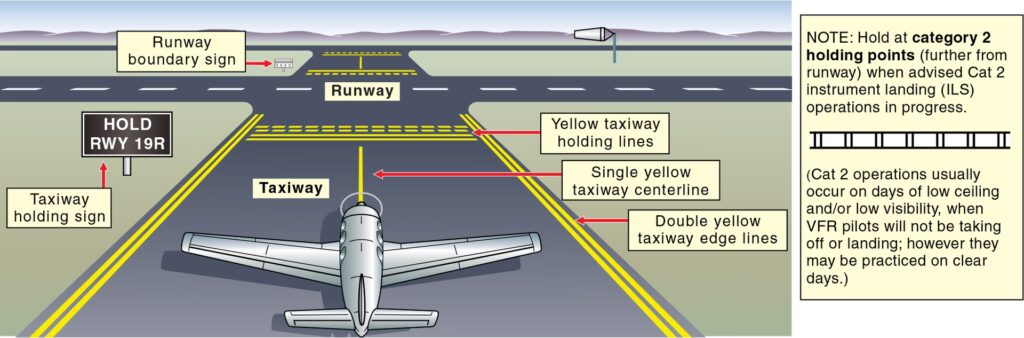

Runway Holding Position Markings

On the ground, these markings are painted on the taxiway surface to indicate the exact location of the holding point. There are two main patterns:

Stop Bar Lights

In conditions of low visibility (specifically when Runway Visual Range (RVR) is less than 550 meters), stop bars are installed at runway holding positions. These are series of unidirectional steady red lights embedded in the pavement across the taxiway, indicating that aircraft must stop as long as the lights are illuminated.

Runway Guard Lights

These are a system of two unidirectional yellow flashing lights positioned at holding points where taxiways meet runways. They serve as a visual warning to pilots and vehicle drivers that they are about to enter an active runway, acting as a crucial first line of defense against runway incursions. They are particularly important when RVR is less than 1,200 meters.

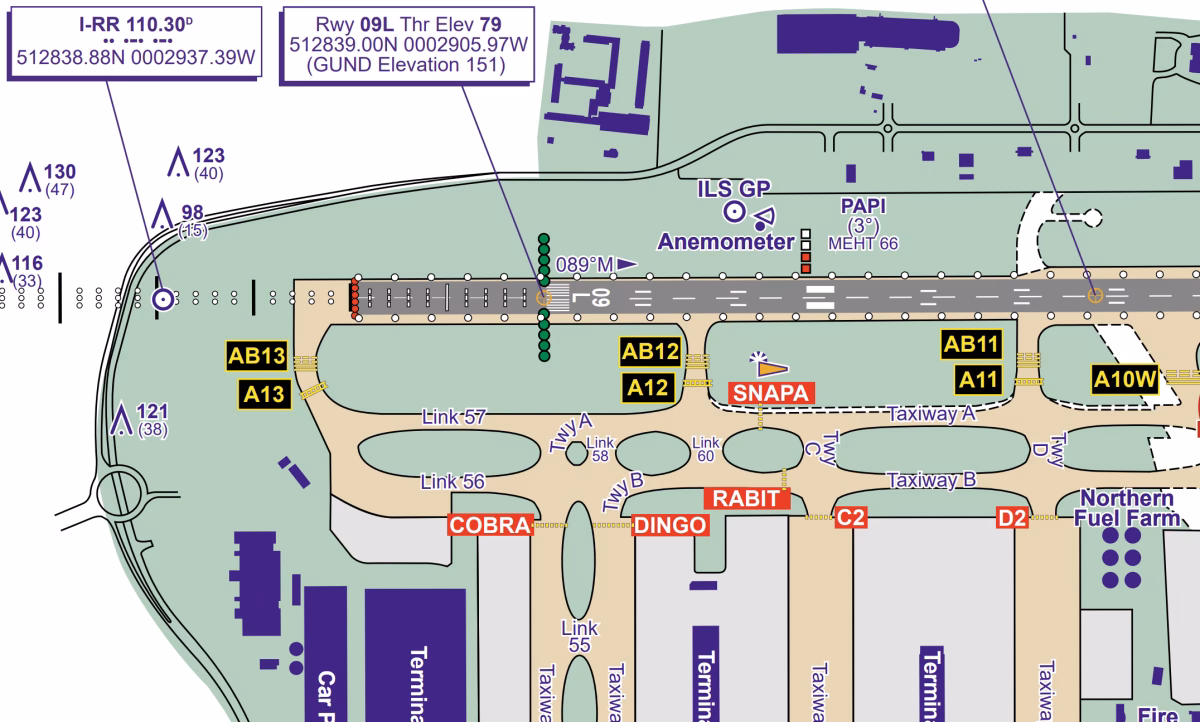

CAT II/III Holding Points: A Closer Look

The designation 'CAT II/III' refers to the categories of precision instrument approaches, which are used in very low visibility conditions. Airports with CAT II/III capabilities have more stringent requirements to protect the integrity of the ILS/MLS signals.

Why would you be sat at a CAT II/III holding point? If an aircraft is performing a CAT II or CAT III approach (due to weather conditions or for pilot currency), ATC may instruct other aircraft to hold at the CAT II/III holding point, which is typically located further away from the runway than a standard CAT I holding point. This is to prevent any potential interference with the sensitive ILS/MLS equipment that guides the approaching aircraft.

The presence of multiple holding positions for a single runway crossing is often directly related to these ILS critical/sensitive areas. The further holding position (often designated as CAT II/III) ensures that even aircraft holding there do not negatively impact the precision approach signals.

Common Taxi Instructions and Phraseology

Understanding the instructions given by ATC is vital. Here are some common scenarios:

• "Taxi to holding point [number] [runway (number)] via [specific route]." This is a standard taxi clearance. For example, "Taxi to holding point A, runway 36, via A." This means to follow taxiway A all the way to the end where it meets runway 36 and stop at the designated holding position.
• "Taxi to holding point [number] [runway (number)] via [specific route], hold short of runway [number]." This instruction means to taxi to the specified holding point, but stop and hold at a different, intermediate holding point (e.g., at an intersection with another runway) before reaching the final holding point for the intended runway. For example, "Taxi to holding point C, runway 36, via A and C, hold short of runway 36 at C." This might be used if the runway is shortened, and the aircraft will line up from taxiway C.
• "Report holding point." This requires the pilot to inform ATC once they have reached the specified holding point. For example, "Tower, Stack 1 is at holding point A, fully ready."
• "Hold your position." This is an immediate instruction to stop and remain stationary at the current location.

It's important to note the distinction between 'holding point' and the older US phraseology 'taxi into position and hold'. To avoid confusion and potential runway incursions, the FAA replaced 'Taxi into position and hold' with 'Line up and wait'. This highlights the global effort to standardize and clarify aviation phraseology.

Runway Incursions: The Ever-Present Risk

Runway incursions, defined as the incorrect presence of an aircraft, vehicle, or person on the protected area of a surface designated for the landing and takeoff of aircraft, are a significant safety concern. Holding points are a fundamental tool in preventing these incidents. When pilots and vehicle drivers meticulously adhere to holding point instructions and wait for explicit clearance, the risk of entering an active runway inappropriately is drastically reduced.

Conclusion

Holding points are more than just painted lines on the tarmac; they are essential safety features that underpin the orderly and secure operation of any airport. From the basic requirement to protect runways to the intricate details of protecting sensitive instrument landing systems, understanding the purpose and identification of holding points is a cornerstone of aviation safety. By diligently following ATC instructions and recognizing the markings, pilots and ground personnel play a crucial role in preventing runway incursions and ensuring that the skies, and the ground beneath them, remain safe for all.
