The Unsung Hero of the Rails: Cowcatchers Explained

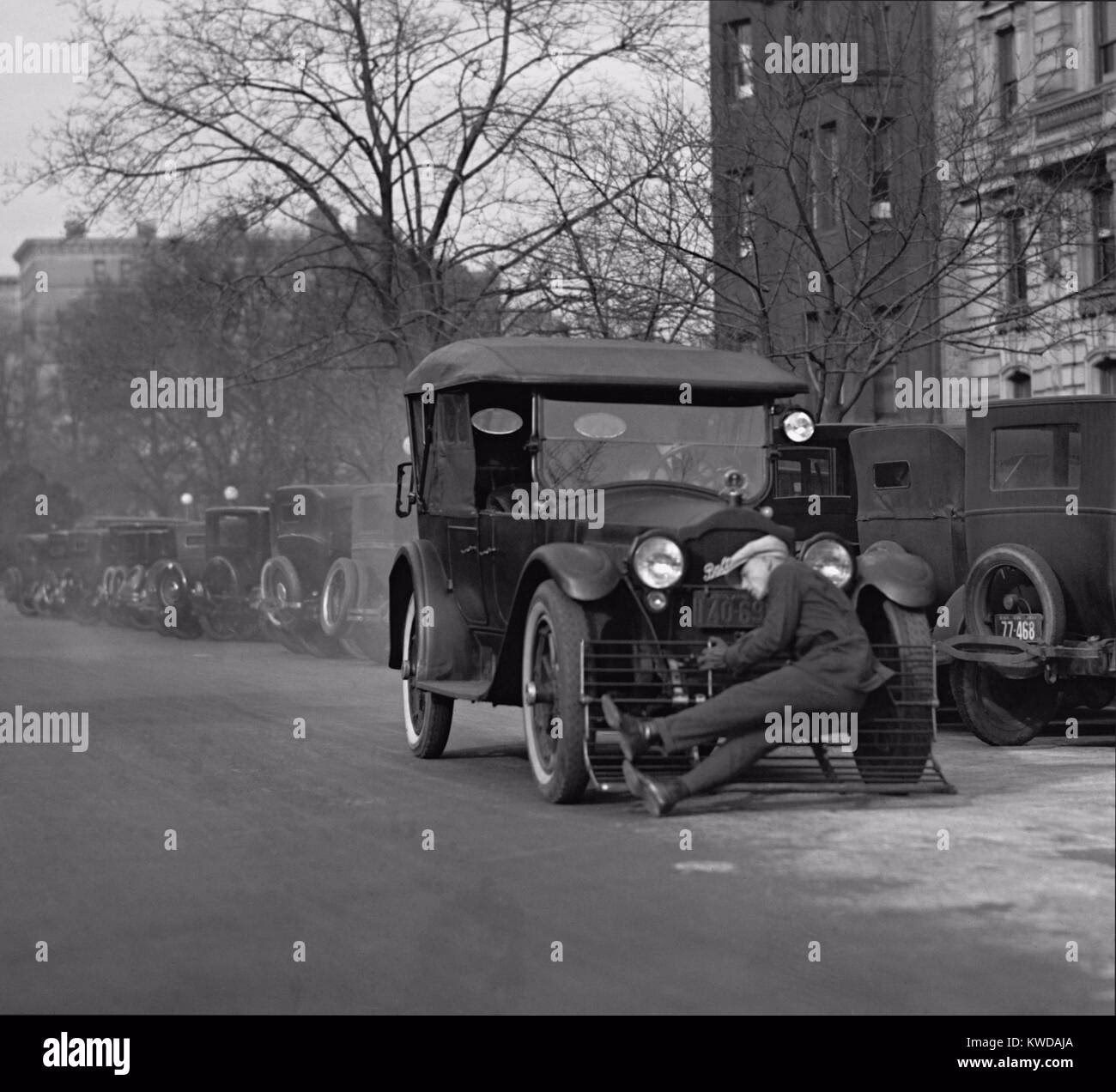

In the early days of railway travel, when steam locomotives first began to crisscross the landscape, the tracks often ran through open countryside, unfenced and unprotected. This presented a significant challenge: unexpected obstacles. From stray livestock wandering onto the line to fallen trees and other debris, the path ahead was rarely clear. This precarious situation demanded an ingenious solution, a device that could effectively clear the tracks and ensure the safety of the train, its crew, and its passengers. Enter the cowcatcher, a deceptively simple yet profoundly important piece of engineering that has evolved dramatically over the centuries to become a cornerstone of railway safety.

The Genesis of the Cowcatcher: A Necessity Born of the Rails

The concept of the cowcatcher, or 'pilot' as it's often known in railway parlance, emerged directly from the practical challenges faced by early railway operators. Imagine a powerful locomotive, hurtling down the tracks at what was then considered high speed, suddenly encountering a herd of cattle or a substantial piece of fallen timber. Without a means to clear these obstacles, the consequences could be catastrophic: derailment, damage to the locomotive, and serious injury or even loss of life. The initial designs were born out of this urgent need to protect the train from impacts, ensuring the locomotive remained on the rails and its journey uninterrupted.

The primary function was not merely to absorb the impact, but to manipulate the obstacle. The design principle was crucial: the cowcatcher had to successfully deflect an object, pushing it upwards and sideways, clear of the track. Crucially, it was designed to prevent the object from being lifted high enough to wedge under the locomotive, which could cause the train to lift off the rails and derail. This fundamental concept of deflection, rather than outright destruction or absorption, became the guiding principle for all subsequent designs.

Engineering for Impact: Early Designs and Principles

Early cowcatchers were often rudimentary, yet effective, in their approach. Typically, they took the form of a blunt wedge, often with a shallow V-shape when viewed from above. This specific geometry was not arbitrary; it was carefully considered to maximise the upward and outward deflection of any object encountered. The idea was to create a ramp-like effect that would lift the obstacle just enough to clear the wheels and undercarriage, while simultaneously pushing it to the side of the track. This ensured that the momentum of the train itself contributed to clearing the path, rather than being impeded by the obstacle.

These pioneering designs were frequently fabricated from sturdy bars, usually of iron or steel, mounted onto a robust frame. This open, barred construction allowed for a degree of flexibility and resilience, capable of withstanding significant force without shattering. While simple, these early cowcatchers were vital components, literally paving the way for safer and more reliable rail travel. They represented a significant leap forward in railway engineering, addressing a core safety concern that was paramount in the nascent years of the industry.

The Evolution of Form and Function: Materials and Adaptations

As locomotive technology advanced, so too did the design and materials of the cowcatcher. The initial barred constructions, while functional, eventually gave way to more refined forms. Later on, sheet metal cowcatchers became prevalent. The use of sheet metal offered several advantages: a smoother surface, which could reduce drag and improve the aerodynamics of the locomotive, and potentially better deflection characteristics due to its continuous surface. This smoother profile meant less chance of smaller debris snagging on individual bars.

Beyond sheet metal, some designs even incorporated cast steel for their cowcatchers. Cast steel provided exceptional mass and an even smoother, more integrated shape, offering superior strength and durability. The weight of a cast steel pilot could also contribute to the stability of the locomotive during an impact, further aiding in the deflection process.

A significant innovation that emerged during the later days of steam locomotives was the 'drop coupler pilot'. The front coupler, used for attaching rolling stock, could pose a snagging risk if it caught on an obstacle during an impact. The drop coupler pilot was ingeniously designed to swing out of the way upon impact, preventing it from getting caught up and potentially causing more damage or hindering the cowcatcher's primary function. This small but critical adaptation highlighted the continuous refinement driven by practical experience on the rails.

Another notable adaptation, particularly in the United States, was the inclusion of steps on cowcatchers of early switcher locomotives. These were known as "footboard pilots" and allowed yard workers to ride conveniently on the front of the locomotive during shunting operations. While practical for the time, safety concerns eventually led to footboard pilots being outlawed in many countries, including parts of Europe and eventually the US, due to the inherent risks to personnel. Modern locomotives now feature front and rear platforms with safety rails, or deeply recessed steps, offering a much safer environment for workers who need to ride outside the cab.

Modern Requirements and Advanced Safety Features

The role of the cowcatcher has expanded significantly in modern rail transport. While the threat of livestock might be less prevalent on mainlines due to extensive fencing, the need for obstacle deflection remains paramount. Modern locomotives face challenges from diverse sources, including fallen debris, track maintenance equipment, and even the potential for collisions with other vehicles at level crossings.

In Europe, for instance, modern rail vehicles are subject to stringent regulations. Most European rail vehicles must now have cowcatchers that incorporate a snowplow function and robust rail guards. This dual functionality means they are not only designed to deflect solid objects but also to clear heavy snow from the tracks, ensuring operational continuity in adverse weather conditions. The strength of these systems is rigorously tested; the required strength in the middle of the track is typically 30 kN (approximately 6,700 lbf), while near the rails, where impacts might be more concentrated, it must withstand 50 kN (approximately 11,000 lbf). This demonstrates the immense forces these components are designed to manage.

Modern US diesel locomotives, while still featuring pilot-like structures, often exhibit flatter, less wedge-shaped cowcatchers compared to their historical counterparts. This design evolution is largely influenced by the placement of the cab near the front of the locomotive. With the crew positioned so close to the point of impact, there’s an increased vulnerability to obstacles that might be pushed upwards by a traditional wedge-shaped cowcatcher. The flatter design aims to minimise the upward trajectory of debris, redirecting it more horizontally and away from the cab area, thus enhancing crew protection.

Perhaps one of the most significant modern safety innovations is the anti-climber. Fitted across the front of most modern locomotives, above the coupler, the anti-climber is a horizontally grooved steel beam. Its primary purpose is to prevent colliding locomotives from 'riding up' and moving over the frame of the other locomotive, particularly into the cab area. In the event of a head-on collision, the grooves on the anti-climber are designed to interlock with those on the opposing locomotive's anti-climber, effectively preventing one vehicle from telescoping over the other. This greatly reduces the risk of severe damage to the locomotive structure and, crucially, protects the crew and passengers within the cab. It is a vital passive safety feature, adding an indispensable layer of protection in high-energy collision scenarios.

Beyond Livestock: Other Obstacles and Their Mitigation

While the name 'cowcatcher' conjures images of errant farm animals, the scope of objects that these devices are designed to handle is far broader in contemporary railway operations. Modern pilots and their integrated safety features are engineered to mitigate impacts from a wide array of trackside hazards. This includes large pieces of debris that might fall from bridges or overpasses, fallen trees obstructing the line, or even unexpected encounters with road vehicles at unprotected level crossings. In snowy regions, the integrated snowplow function becomes critical, allowing trains to carve a path through deep drifts and maintain schedules even during severe winter weather. The ability to clear the tracks of such diverse obstacles is fundamental to maintaining operational efficiency and, more importantly, ensuring the continued safety of rail travel. The meticulous design and rigorous testing of these components underscore their critical role in railway infrastructure.

Global Perspectives: Cowcatchers Around the World

The fundamental principle of obstacle deflection is universal, but the specific implementation of cowcatchers varies significantly across different railway networks, reflecting local conditions, historical engineering practices, and regulatory frameworks. As discussed, European designs often prioritise the integrated snowplow function, a necessity given the often snowy winters in many parts of the continent. Their emphasis on specific kN strength ratings also highlights a highly standardised and regulated approach to safety equipment.

In contrast, the evolution of US designs, particularly with the flatter pilots and the prominent anti-climber, reflects the typical locomotive configurations and the direct impact on crew safety in high-speed, heavy-haul environments. While the term 'cowcatcher' might be somewhat archaic in its literal sense, the underlying engineering philosophy – to protect the train and its occupants from whatever lies on the track – remains an enduring priority for rail operators globally. The commitment to safety is a shared objective, even if the technical solutions diverge.

Comparative Analysis: Evolution of Locomotive Front-End Protection

Frequently Asked Questions (FAQs)

Are cowcatchers still used on modern trains today?

Yes, absolutely. While the term 'cowcatcher' might sound old-fashioned, the underlying function of protecting the locomotive from obstacles is more critical than ever. Modern trains use highly evolved versions, often referred to as 'pilots' or 'obstacle deflectors,' which incorporate advanced materials and sophisticated safety features like anti-climbers and integrated snowplows. They are a standard and essential component of nearly all locomotives worldwide.

What's the difference between a cowcatcher and a snowplow?

Historically, a cowcatcher was primarily designed to deflect solid objects like animals or debris. A snowplow, on the other hand, is specifically shaped and designed to clear heavy snow from the tracks. In modern railway engineering, these two functions are often integrated into a single unit, particularly in regions prone to heavy snowfall. So, a modern pilot might function as both a cowcatcher and a snowplow, offering dual utility.

Why are cowcatchers on modern US diesel trains often flatter than older designs?

The flatter design on many modern US diesel locomotives is a direct safety enhancement, primarily for the crew. Unlike older steam locomotives where the crew was further back, modern diesel locomotives often have the cab located very close to the front. A traditional wedge-shaped cowcatcher, while effective at deflecting objects, could potentially propel debris upwards towards the cab. The flatter design aims to redirect obstacles more horizontally and away from the crew compartment, significantly reducing the risk of impact to the personnel inside.

What is an anti-climber, and how does it work?

An anti-climber is a crucial safety device fitted to the front of most modern locomotives, typically above the coupler. It's a horizontally grooved steel beam designed to prevent one train from 'climbing' or 'telescoping' over another in the event of a head-on collision. The grooves on the anti-climber are engineered to interlock with those on the colliding train's anti-climber, effectively preventing the vehicle bodies from riding up and over each other, which could lead to catastrophic damage and endanger the occupants. It's a passive but highly effective safety measure.

Are there specific regulations or standards for cowcatchers?

Yes, particularly in regions like Europe, there are stringent regulations and standards governing the design, construction, and strength of cowcatchers (pilots/obstacle deflectors). These regulations specify the minimum forces the component must withstand, ensuring they can effectively perform their protective function under various impact scenarios. These standards contribute significantly to the overall safety and integrity of railway operations.

Conclusion

From their humble beginnings as simple deflectors on pioneering steam engines to the sophisticated, multi-functional safety systems of today’s high-speed trains, cowcatchers have undergone a remarkable evolution. No longer just about clearing livestock, these essential components are now integral to comprehensive rail safety strategies, protecting against a myriad of trackside hazards, ensuring operational resilience, and, most importantly, safeguarding the lives of passengers and crew. Their continuous development, driven by engineering innovation and a relentless pursuit of safety, underscores their enduring importance as an unsung hero of the railway world, a silent guardian that continues to keep our trains on the right track.
