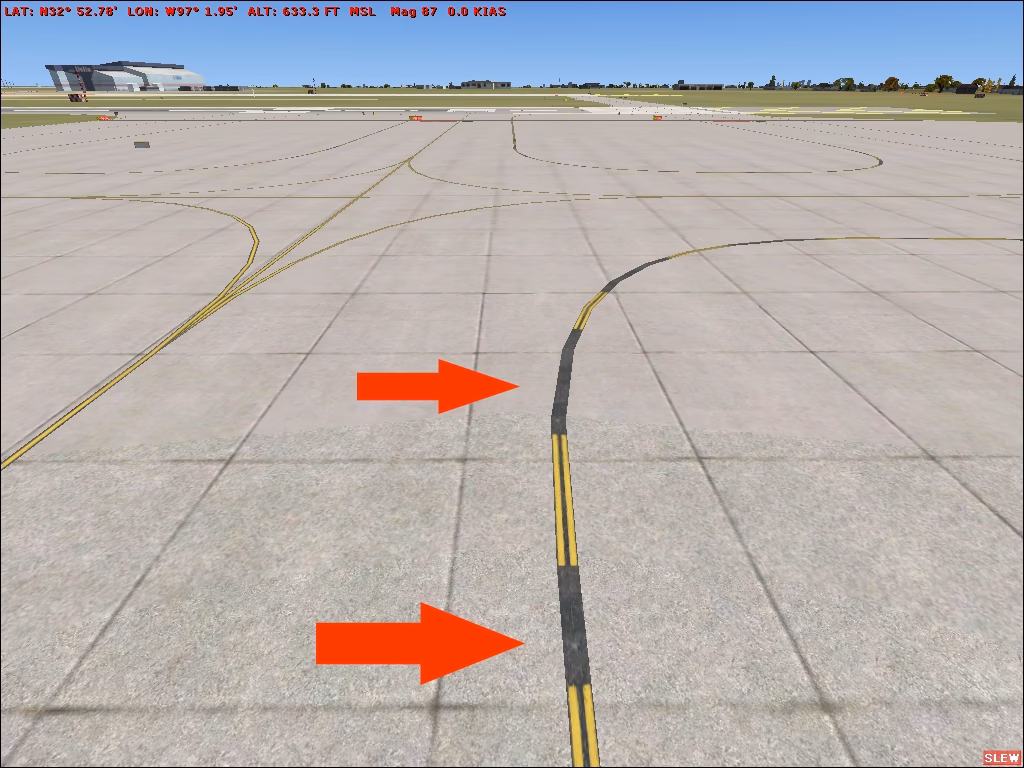

Fixing Taxiway Line Flickering in FSX

For many flight simulation enthusiasts, the immersive experience of piloting aircraft can be significantly marred by visual glitches. One of the most persistent and frustrating issues, particularly when utilising DirectX 10 rendering in Microsoft Flight Simulator X (FSX), is the disconcerting flickering of taxiway lines. This anomaly can detract from the realism of airport operations and even make navigating complex taxiways a challenging task. Fortunately, through community insights and dedicated experimentation, several effective rules and workarounds have been developed to combat this visual nuisance. This article aims to consolidate these solutions, providing a comprehensive guide to restoring crisp, clear taxiway markings in your FSX environment.

Understanding the DirectX 10 Taxiway Flickering Phenomenon

The flickering of taxiway lines in FSX, especially when DirectX 10 is enabled, is often attributed to conflicts in how the simulator renders textures and geometry. DirectX 10 introduced advanced rendering features, but it also brought about new compatibility challenges with existing add-on scenery and core simulator assets. These conflicts can manifest as lines appearing and disappearing, shimmering, or exhibiting a general instability. While the exact technical cause can be complex, involving shader interactions and texture layering, the practical outcome is a visual distraction that needs addressing.

Community-Driven Solutions: The "Building Method"

A significant breakthrough in resolving this flickering issue came from the FSDeveloper Community, which proposed a clever workaround involving the strategic placement of simple objects beneath airport buildings. The core idea is to create a specific texture or geometry conflict that, when resolved by the simulator's rendering engine, inadvertently eliminates the taxiway line flicker. These methods generally involve overlaying a specific, simple texture element in a way that forces a consistent rendering pass.

Rule Set for Eliminating Flicker

Based on extensive testing and community feedback, a set of rules has emerged to tackle various airport texture configurations. These rules are designed to be applied using the Airport Design Editor (ADE) or similar scenery design tools, allowing you to place a simple, unobtrusive object with a specific texture beneath an existing airport building.

Scenario 1: All Asphalt Surfaces

If an airport primarily uses asphalt for its runways and taxiways, the solution is to draw a two-node concrete taxiway beneath a building. This concrete taxiway should not connect to any other taxiway segments, acting as an isolated element. The contrast in texture and geometry is key here.

Scenario 2: All Concrete Surfaces

Conversely, if an airport features all concrete runways and taxiways, the recommended approach is to draw an asphalt apron beneath a building. It's important to note that this can be done even if part of this new asphalt apron visually overlaps with an existing concrete apron. The overriding factor is the introduction of the asphalt texture.

Scenario 3: Mixed Textures

Airports with a combination of concrete and asphalt textures require a more nuanced approach. The decision depends on the primary texture used for the airport's taxiways:

• If the taxiways are predominantly concrete, draw an asphalt apron beneath a building.
• If the taxiways are predominantly asphalt, draw a two-node concrete taxiway beneath a building.

Scenario 4: Mixed Taxiway Textures

In cases where the taxiways themselves utilise both concrete and asphalt textures, you should look at the apron texture to guide your decision. The rule of thumb is to draw an object using a texture that *contrasts* with the apron texture.

• Example: If concrete taxiways are prevalent and they cross over concrete aprons, you should draw an asphalt apron beneath a building. This is even true if there are also asphalt taxiways present at the airport. The goal is to create a definitive texture mismatch for the overlapping element.

Applying the "Building Method": Key Considerations

When implementing these rules, remember the following:

• Object Choice: Always draw an apron when using an asphalt texture for the object you are introducing. Always draw a two-node taxiway when using a concrete texture.
• Placement: The object should be placed entirely beneath an existing, non-essential building to avoid visual clutter or interference with airport operations.
• Unconnected Taxiways: If drawing a concrete taxiway, ensure it is a simple two-node line and does not connect to any other taxiway segments or the runway.

An Alternative: Real-World Texture Verification

An alternative, often simpler, approach is to consult real-world data, such as Google Earth or aerial photography. If your research reveals that an airport genuinely consists of only one type of surface (all concrete or all asphalt), you can often resolve the flickering by correcting the textures in your simulator's scenery. This might involve editing the scenery files to ensure consistency, aligning them with the real-world layout. If the real-world airport has a mix, and your simulator reflects this accurately, the "building method" described above is usually the most effective solution.

Testing with Add-on Packages: BlackSquare Real Taxiways

The interaction between core simulator features and third-party add-ons can sometimes introduce unexpected issues. A recent observation by a user highlighted a potential conflict between REX Global Airport Textures and the BlackSquare Real Taxiways package, specifically the "Optional Textures for outside the US" component. Following a simulator update (SU8), this user noticed that taxiways and runways appeared as if brand new. By isolating add-ons, they found that enabling the BlackSquare Optional Textures reverted the appearance to this overly pristine state, suggesting a conflict that could potentially exacerbate or interact with rendering issues like taxiway flickering.

While this specific conflict may not directly cause the DirectX 10 flickering, it illustrates the importance of managing your add-on library. If you are experiencing flickering and also use extensive texture add-ons, consider testing your setup by disabling non-essential packages, including custom taxiway texture sets, to see if the issue resolves. This process of elimination can help pinpoint the root cause.

Troubleshooting Add-on Conflicts

When dealing with potential add-on conflicts, a systematic approach is recommended:

• Isolate: Rename your main Community folder and create a new, empty one. Then, incrementally add back your add-ons, restarting the simulator after each addition to check for the flickering.
• Specific Textures: If a package like BlackSquare Real Taxiways is suspected, try enabling only the core US textures first, then test the optional international textures separately to identify the specific component causing the issue.
• Developer Communication: Reach out to the developers of suspected conflicting add-ons (like REX and BlackSquare in the example) to inquire about known compatibility issues or updates.

Summary of Solutions

To recap, here are the primary strategies for tackling DirectX 10 taxiway line flickering in FSX:

Frequently Asked Questions

Q1: Will these methods work for all airports?
These methods have been highly effective for airports utilising only concrete and asphalt textures. While untested on airports with different surface materials, they cover the vast majority of common FSX airport scenarios.

Q2: Do I need special software to implement these fixes?
Yes, you will typically need a scenery design tool like Airport Design Editor (ADE) to place the additional objects beneath buildings. ADE is a powerful freeware tool for creating and editing FSX scenery.

Q3: Can I just change the taxiway textures in the simulator?
While you can sometimes edit texture files, the "building method" is often more reliable as it works by manipulating how the simulator's engine processes the scene, rather than directly replacing core textures which can lead to other issues.

Q4: I use an ENB or other post-processing effects. Could this be causing the flicker?
While less common, advanced post-processing effects can sometimes interact unpredictably with the simulator's rendering. It's worth testing with these effects disabled if the texture-based solutions don't yield results.

Q5: What if the airport has no buildings to place objects under?
In rare cases where an airport scenery lacks suitable buildings, you might need to place a very small, unobtrusive object (like a simple box or cone) in an out-of-the-way location within the airport perimeter. The key is to introduce the conflicting texture or geometry.

By applying these well-tested strategies, flight simulation enthusiasts can significantly improve the visual fidelity of their FSX experience, ensuring that taxiway lines remain stable and contribute to, rather than detract from, the realism of every flight.
