Navigating the Airport Maze: A Pilot's Guide

As you sit comfortably in the airport terminal, perhaps enjoying a cup of tea or catching up on emails, your gaze might drift across the vast expanse of concrete and grass outside. You see colossal aircraft moving with what appears to be effortless precision, seemingly knowing exactly where they're headed across a bewildering network of paths. For many, this intricate dance of planes from the gate to the runway, or vice versa, remains a captivating mystery. How do these pilots, navigating machines weighing hundreds of tonnes, manage to find their way through what often looks like an enormous, sprawling labyrinth of taxiways and runways at a busy international airport? It's a question that boggles the mind, but the answer lies in a highly sophisticated system of communication, navigation tools, and ground infrastructure that ensures every movement is precise, controlled, and above all, safe.

The apparent ease with which pilots manoeuvre their aircraft around an airport belies an incredibly rigorous and detailed process. Far from relying on guesswork, pilots employ a combination of specialised tools and strict communication protocols to ensure they stay on the correct path. At the heart of this system are detailed taxi diagrams and, increasingly, real-time digital moving maps. These aren't just simple maps; they are incredibly comprehensive charts brimming with essential information, much like a detailed road map but specifically designed for the unique environment of an airport.

Complementing these visual aids is the constant, critical communication with the airport's Ground Controller. This isn't a casual chat; it's a highly formalised exchange where pilots receive precise taxiing instructions. A fundamental rule of this communication is that pilots must copy and repeat these instructions verbatim. This 'readback' is crucial, as it confirms that the pilot has heard and understood every single detail of the clearance. Deviating from these instructions, even slightly, is simply not an option, as it could have severe safety implications for all aircraft and personnel on the ground.

The journey from the parking stand to the departure runway, or from the landing strip to the gate, is a meticulously choreographed sequence. When preparing for departure, one of the pilots will establish radio contact with the airport's Ground Controller on a specific frequency. They'll identify themselves and their aircraft, stating their current gate or parking position. At particularly large and bustling international airports, there's an additional layer of control: the Apron Controller. This controller grants clearance for push-back and engine start-up. Only once the engines are running and the crew is ready to move will the Apron Controller hand them over to the Ground Controller, advising them to switch to a different radio frequency. It's at this point that the Ground Controller provides the pilot with a precise, step-by-step route to the designated departure runway.

Conversely, upon landing, once an aircraft has safely touched down and exited the main runway, the airport's Tower Controller takes over. They then 'hand off' the aircraft to the Ground Controller, instructing the pilot to switch frequencies and establish contact. Once communication is established, the Ground Controller issues the taxiing instructions necessary to guide the aircraft to its assigned apron or gate. Again, the pilot's duty is to listen intently, repeat the instructions verbatim, and then follow them precisely as directed. This disciplined approach is paramount to maintaining the seamless flow and safety of operations across the entire airport.

So, with a route given, how do pilots confidently navigate this intricate network? Every airport publishes a comprehensive taxiway and runway diagram, available both in traditional paper format and, increasingly, as up-to-date digital copies. These aren't just simple lines on a map; they are a treasure trove of vital information, including:

• Taxiway names and numbers
• Runway numbers and designations (e.g., 34L, 35R)
• Any one-way directions for taxiways
• Markings for high-incident or critical areas
• Essential airport radio frequencies
• Apron letters and specific parking areas
• Designated de-icing areas

Consider Istanbul Airport, one of Europe's largest and busiest hubs. Its taxiway map, like many others, clearly marks taxiway names in black text on a yellow background – a standard that helps pilots quickly identify their location and intended path.

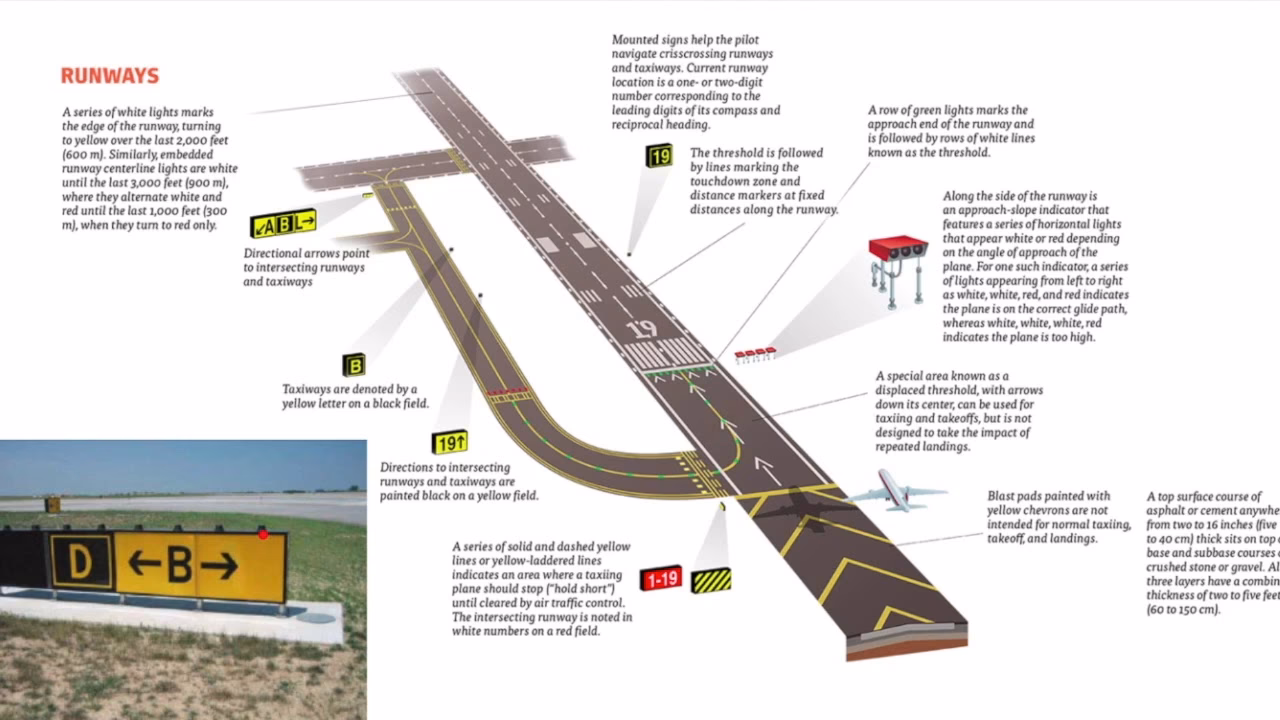

Beyond the maps, the physical infrastructure of an airport provides constant guidance. This includes an extensive system of signage, painted lines on the ground, and a sophisticated lighting network. Each taxiway is clearly marked with its own signage that directly corresponds to the airport diagram, ensuring consistency. Painted lines and strategically placed lighting further aid pilots, helping them to avoid wrong turns and maintain their position on the taxiway, especially in challenging conditions.

To truly appreciate this system, let's trace the journey of a hypothetical aircraft, Turkish Airlines flight TK1826, as it lands at Istanbul. Imagine the plane has just touched down on runway 34L and is using a high-speed exit to clear the runway quickly. Once clear, the aircraft is now positioned on taxiway A7B (Alpha Seven Bravo). It's at this crucial juncture that the Ground Controller will issue their instructions, perhaps something like: 'TK1826 Taxi A (Alpha), A3 (Alpha Three), E (Echo), Hold Short B1A (Bravo One Alpha).' The pilot, having repeated these instructions, now begins to follow this precise route.

After executing these initial taxiing instructions, the aircraft might find itself at a 'High-Incident area', perhaps marked by a red circle like HS13 on the diagram. At this point, the pilots must inform the Ground Controller that they are 'Holding Short' on B1A. This term signifies that they are stopped at a designated line, just before needing to cross an active runway – in this case, runway 35L (the Left runway of 35). This 'Hold Short' line represents a clearance limit, meaning they cannot proceed further without explicit permission. Until the runway is deemed safe to cross, the ground controller will not issue further clearance.

Once the runway is clear, the ground controller will grant permission to cross runway 35L, but often with another 'Hold Short' instruction – perhaps for taxiway B1B, because of runway 35R (the Right runway of 35). Again, the pilot must acknowledge and confirm they are holding short of Runway 35R on B1B when they reach that specific line. Crossing any 'Hold Short' line without explicit clearance is a severe infraction, ranging from a stern reprimand and a hefty fine from the aviation authority to, in the worst-case scenario, a catastrophic collision with a landing or departing aircraft. It's a rule that underscores the absolute necessity of precision and adherence to instructions.

Finally, once all runways are clear and it's safe to proceed, the ground controller will issue the remaining clearance to guide the aircraft to its correct apron: 'TK1826 You are Cleared To Cross Runway 35R, Taxi C1 (Charlie One) to Terminal 2, Contact Ground 6 on 121.675.' Each step, each instruction, is repeated back by the pilot, a vital safeguard, especially when pilots may be speaking in a non-native language, ensuring mutual understanding.

In modern aircraft, sophisticated computerised maps display the aircraft's exact position in real-time, making taxiing significantly easier and more intuitive. For pilots flying private aircraft, private jets, or older models without these integrated avionics, similar real-time maps can be accessed via an iPad using specialised aviation apps like Boeing’s Foreflight. This technology is truly a godsend, particularly when navigating an unfamiliar airport, transforming what was once a complex paper-based task into a streamlined digital process.

While standard procedures are the norm, there are alternative methods for navigating an airport, particularly in unusual circumstances. If a pilot is unfamiliar with an airport's layout, they may request a 'Progressive Taxi'. This means the ground controller provides taxi instructions sequentially, focusing solely on that aircraft. While helpful for the pilot, busy ground controllers generally discourage this as it can tie up their frequency and attention. In rare cases, such as when dense fog reduces visibility to near zero, some large airports can still operate on a limited schedule. To ensure aircraft can safely taxi without collisions, the airport may provide a 'Follow-Me' car, a specially equipped vehicle that leads the aircraft around the airport.

The ground infrastructure at an airport is a silent, yet crucial, guide for pilots. Every sign, light, and painted marking serves a specific purpose, meticulously designed to aid navigation and ensure safety.

Taxiway Signs

Just like the street signs we use in our vehicles, airports are covered in their own 'street signs', known as airport signs. There are six distinct types, each providing critical information:

• Mandatory Instruction Signs: These feature white text on a striking red background. They denote critical or prohibited areas. You'll find them prominently at intersections where taxiways meet runways, clearly indicating which runway lies ahead.
• Direction Signs: Marked with black text on a yellow background, accompanied by an arrow. These signs tell the pilot the direction to turn to reach a specific labelled taxiway.
• Information Signs: Also featuring black text on a yellow background, these signs provide various pieces of information, such as airport radio frequencies or noise abatement procedures.
• Location Signs: Displaying yellow text on a black background, these are essential for confirming a pilot's current position, telling them precisely which taxiway they are currently on.
• Destination Signs: These use black text on a yellow background with an arrow, directing pilots to specific areas like the International Terminal or the de-icing area.
• Runway Distance Remaining Signs: With white text on a black background, these signs inform the pilot how much runway remains, typically measured in thousands of feet, crucial for take-off and landing calculations.

Pilots constantly cross-reference these signs with their airport diagrams, using them to confirm their location and the correct turns assigned by the ground controller, effectively navigating the complex taxiway network.

Taxiway Lighting

At night or in conditions of poor visibility, pilots rely heavily on the standardised colour system of airport lighting. Each colour has a specific meaning and placement, guiding aircraft along their designated paths:

• Blue Lights: These lights line the very edge of the taxiways. Their purpose is to clearly define the taxiway boundary, ensuring pilots do not inadvertently taxi off the paved surface and onto the grass.
• Green Lights: Running down the centre of the taxiway, these lights provide a clear centerline for the pilot to follow, helping them to keep the aircraft perfectly centred along the taxiway, ensuring wingtips clear other aircraft and airport obstructions.
• Flashing Yellow Lights: These are critical and denote the 'Hold Short' lines just before entering a runway. They flash specifically to grab the pilot's attention, signifying a mandatory stop point until clearance is given.

By combining the visual cues from these lights with the information from the signs, pilots can confidently navigate the airport, even when darkness or adverse weather significantly reduces visibility.

Taxiway Markings

The final, yet equally important, component of the taxiway navigation system is the array of painted markings on the ground. Paint is an incredibly effective and direct way to convey information and direction to pilots while their aircraft is in motion:

• Every taxiway features a prominent yellow centerline. By keeping the aircraft's nosewheel precisely on this line, pilots ensure the aircraft remains in the middle of the taxiway, allowing its wings to safely clear any other aircraft or static airport obstructions.
• Along the edges of the taxiways, double yellow lines are painted. These serve as a visual warning, helping pilots to immediately realise if they are approaching the edge of the concrete and are about to inadvertently taxi onto the grass.
• Just before entering a runway, white-on-red signs are painted directly onto the surface. These markings confirm to the pilot that they are about to enter the correct runway and also indicate the precise direction they need to turn to align themselves for take-off.

Frequently Asked Questions About Airport Taxiing

How do pilots know where to go at a huge airport?

Pilots use a combination of detailed airport taxi diagrams (paper and digital), real-time digital moving maps, and constant, precise communication with the airport's Ground Controller. They follow specific instructions given verbally and verify their position using signs, lights, and markings on the ground.

What does 'Holding Short' mean?

'Holding Short' means an aircraft must stop and wait at a designated line before entering or crossing an active runway or another critical area. Pilots cannot proceed past this line until they receive explicit clearance from Air Traffic Control.

Why do pilots have to repeat instructions back to the controller?

Pilots repeat instructions verbatim (readback) to ensure that they have heard and understood the instructions correctly. This is a critical safety measure, preventing miscommunication, especially in busy environments or when pilots may be speaking a foreign language.

What happens if a pilot makes a mistake and takes the wrong taxiway?

Taking a wrong turn or crossing a 'Hold Short' line without clearance is a serious safety violation. It can result in immediate intervention from the Ground Controller, followed by fines from aviation authorities. In the most severe cases, it could lead to a collision with other aircraft.

Are all airport taxiway systems the same?

While the fundamental principles, signage, lighting, and marking standards are universal across most international airports, the specific layout and complexity of taxiways vary greatly from airport to airport. Pilots must study the layout of each airport they operate into.

The next time you’re at an airport, perhaps waiting for your flight, take a moment to appreciate the intricate ballet unfolding on the tarmac. The seemingly effortless movement of aircraft from gate to runway and back is, in fact, the result of a highly sophisticated, multi-layered system. From the precise instructions of ground controllers to the detailed maps, the array of signs, the specific colours of lights, and the clear markings on the ground, every element works in harmony. This unseen choreography ensures that colossal aircraft, much like our road taxis, navigate their routes with unparalleled safety and efficiency, getting passengers and cargo where they need to be, precisely and without incident. It’s a testament to the meticulous planning and dedication that underpins modern air travel.
