Peugeot Expert Window Woes: ECU Reset Riddle

Few things are as frustrating as a vehicle component that works one moment and fails the next, especially when it comes to something as fundamental as an electric window. For many Peugeot Expert owners, particularly those with the 2007 model, a peculiar and persistent issue with the driver's side electric window has become a recurring nightmare. This isn't just a simple case of a dead motor or a faulty switch; it's a more nuanced problem where the vehicle's brain, the Electronic Control Unit (ECU) – often managed by the Body Systems Interface (BSI) – seems to 'forget' its fundamental settings, leading to a daily ritual of recalibration. Understanding why your Peugeot Expert's wiring diagram might not be providing the full picture for this specific fault requires a deeper dive into the interconnected world of automotive electronics.

The symptoms are remarkably consistent: on the first use of the day, the window, if closed, will only move downwards, regardless of which way the switch is operated. Once fully down, coaxing it back up becomes a test of patience, requiring numerous attempts. When it finally decides to ascend, it does so in small increments, mimicking the precise steps outlined in the owner's manual for a 'limit switch reset'. Following this manual procedure – holding the switch up for a few seconds once closed, then cycling the ignition – temporarily resolves the issue, allowing the window to operate perfectly for the remainder of the day. Yet, a day or two later, the cycle repeats. The switch appears fine, the motor clearly works when it 'remembers' its settings, so what's truly at play?

Understanding Your Peugeot Expert's Electric Window System

To diagnose this intermittent amnesia, it's crucial to grasp the components involved in your Peugeot Expert's electric window operation. It's more complex than a simple motor and switch. At its heart, you have:

• Window Motor: This electromechanical unit physically moves the window glass up and down. Modern window motors often integrate a control module and a position sensor.
• Window Switch: The interface you interact with, sending signals to the control unit.
• Electronic Control Unit (ECU) / Body Systems Interface (BSI): This is the central brain for many of your vehicle's electrical functions. In Peugeot vehicles, the BSI is particularly critical, managing everything from central locking and lighting to, yes, your electric windows. It receives signals from the switch, sends commands to the motor, and crucially, stores the 'limit' settings – the fully open and fully closed positions – which are essential for one-touch operation and anti-pinch safety features.
• Wiring Harness: The network of wires connecting all these components, carrying power and data signals.
• Limit Switches/Position Sensors: These inform the ECU/BSI of the window's current position. In many modern systems, this is an encoder built into the motor assembly, tracking its rotations.

The problem described points directly to the ECU (or more specifically, the BSI) losing its calibration data for the window's upper and lower limits. This data is vital for the one-touch auto-up/auto-down function and ensures the window stops correctly without over-extending or damaging the mechanism. When this data is lost, the system reverts to a 'safe' mode, often requiring manual, incremental operation until it can be re-learned.

The 'Forgetful' ECU Phenomenon: Why It Happens

The intermittent nature of this fault is the key to understanding it. If the window motor or switch were truly dead, it wouldn't work at all, even after a reset. The fact that it works perfectly *after* a reset, then fails again, suggests a persistent issue with data retention or communication rather than a hard component failure. Here are the most likely culprits:

• Faulty Position Sensor/Encoder within the Window Motor: This is arguably the most common cause for the exact symptoms described. The motor assembly contains a sensor that tracks the window's position. If this sensor is failing intermittently, it might send corrupt or no data to the BSI. While the motor itself can still receive power and move, the BSI cannot accurately 'see' its position. When you perform the reset, you force the BSI to re-learn, but if the sensor is unreliable, it quickly loses this learned position, especially after a power cycle (like turning the ignition off overnight). This is often an internal fault that means the entire motor unit needs replacement, as the sensor is usually not separately serviceable.
• Intermittent Power Supply to the Window Motor/Module: Even if the motor receives enough power to operate, a brief drop or fluctuation in voltage to the integrated control module within the motor, or to the BSI itself, could cause it to lose its volatile memory (where the learned positions are stored temporarily). This could be due to a loose connection, a corroded wire, or even a weakening battery that struggles to maintain stable voltage during ignition cycles.
• BSI Software Glitch or Internal Fault: Less common, but possible, is an internal fault within the BSI itself. This could be a software bug that prevents it from permanently storing the learned limit positions, or a hardware fault within the BSI's memory circuits. This would typically require a BSI software update or, in rare cases, BSI replacement and reprogramming by a Peugeot specialist.
• Wiring Harness Degradation: While the user mentions the wiring diagram not working, the issue isn't necessarily a wrong diagram, but rather a fault *within* the wiring the diagram represents. Over time, especially where the wiring harness passes through the door jamb (the flexible conduit between the body and the door), wires can flex, fray, or corrode. An intermittent break or high resistance in a power or data wire could briefly interrupt communication between the motor/sensor and the BSI, leading to a loss of learned data. This is particularly relevant given the age of the vehicle.

Beyond the Reset: Deeper Diagnostics and Solutions

Relying on the daily reset is a temporary patch, not a fix. To get to the root of the problem, a systematic diagnostic approach is needed. Simply looking at a wiring diagram might not directly point to an intermittent fault within a component or a subtle wiring issue, but it's essential for understanding the circuit.

Table: Troubleshooting Matrix for Intermittent Window Faults

Detailed Diagnostic Steps:

1. Professional Diagnostic Scan: While your standard OBD-II reader might not show specific BSI or window module faults, a Peugeot-specific diagnostic tool (like DiagBox/PP2000 used by dealerships and specialists) is invaluable. This tool can access deeper fault codes related to the BSI, the door control module (if separate), and the window motor itself. It might reveal codes like 'Window Motor Position Sensor Fault' or 'Learning Parameter Not Stored'. This is the first and most crucial step.
2. Inspect the Door Wiring Harness: This is a common failure point on older vehicles. Open the door and carefully inspect the rubber conduit that carries the wires from the body into the door. Flex the wires gently while observing the window's behaviour (if it's currently working). Look for any signs of fraying, cracking, corrosion, or pinching. Pay close attention to the main power and data lines to the window motor and switch. Repair any damaged wires with proper automotive-grade connectors and heat shrink.
3. Voltage Drop Test: Use a multimeter to check the voltage at the window motor's connector when the window is attempting to operate, especially when it's misbehaving. Compare this to the battery voltage. A significant drop (more than 0.5V) indicates high resistance in the circuit, often due to poor wiring or a failing connection.
4. Motor Inspection/Replacement: If diagnostics point to the motor's internal sensor, or if all other avenues are exhausted, replacing the entire window regulator and motor assembly is often the most effective solution. Even if the motor 'operates OK' sometimes, the integrated module or sensor within it might be the weak link. It's often a sealed unit, making internal repair impractical.
5. BSI Re-calibration/Software Update: If diagnostics show no clear fault with the motor or wiring, but the BSI is flagged with communication errors or learning issues, a Peugeot specialist might attempt a BSI re-calibration or a software update. This can sometimes resolve persistent software glitches.

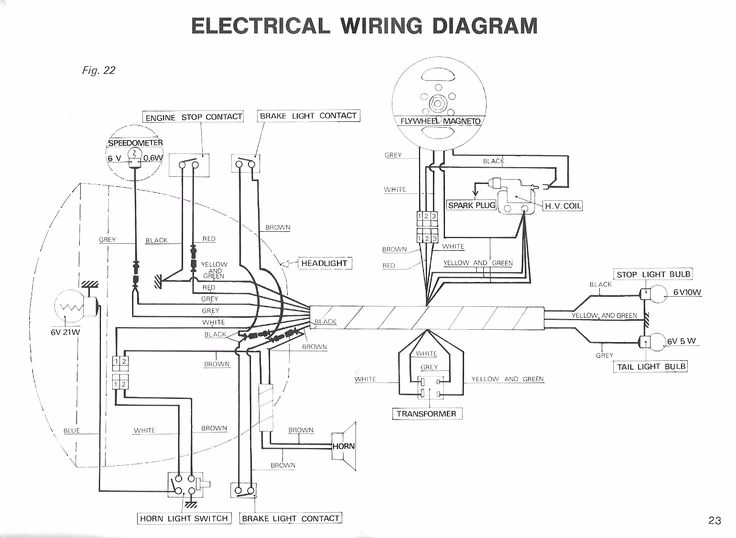

Addressing the 'Why is my Peugeot wiring diagram not working?' query directly

The user's initial question about the wiring diagram not working is insightful. It implies they've tried to use it for diagnosis, perhaps to check continuity or power. The reason it might not be 'working' for this specific issue is that the wiring diagram primarily shows *connections* and *power paths*. It doesn't typically show the internal logic of a component like a motor's integrated control module or the BSI's memory retention capabilities. If all wires show continuity and correct voltage, the problem lies *within* a component that the diagram merely represents as a 'box'.

For instance, the diagram will show power going to the motor, and data lines going to the BSI. If the motor's internal position sensor is faulty, the diagram won't tell you that; it only shows the connection point. You'd need a diagnostic tool to 'talk' to the motor or BSI and identify the internal fault. So, the wiring diagram is crucial for confirming basic electrical integrity, but it's not the sole tool for diagnosing intelligent system failures.

DIY vs. Professional Repair

For this specific issue, a multi-faceted approach is needed. Basic wiring inspection and testing can be a DIY task if you're comfortable with automotive electrics and have a multimeter. However, diagnosing intermittent sensor faults, accessing BSI fault codes, or performing BSI software updates almost certainly requires professional expertise and specialist diagnostic equipment. Attempting a DIY BSI replacement without proper coding and configuration tools can lead to more significant immobiliser or electrical issues.

Frequently Asked Questions (FAQs)

Q: Can a low car battery cause electric window problems in my Peugeot Expert?

A: Yes, absolutely. A weak or dying car battery can lead to unstable voltage throughout the vehicle's electrical system. Modern ECUs and modules are very sensitive to voltage fluctuations, and a drop in voltage, especially during engine start-up or when multiple accessories are used, can cause modules to behave erratically, lose settings, or even reset. Always ensure your battery is in good health and properly charged.

Q: Is it expensive to fix a Peugeot Expert electric window that keeps losing its settings?

A: The cost varies significantly depending on the root cause. If it's a simple wiring repair, it could be relatively inexpensive. If the entire window motor and regulator assembly needs replacing due to a faulty internal sensor, parts can range from £100-£300 (aftermarket) to £300+ (genuine OEM), plus labour. If the BSI itself needs attention (software update or replacement), costs can escalate significantly, potentially £500+ for parts and specialist programming.

Q: How long does the window reset procedure last in a Peugeot Expert?

A: For the specific fault described, the reset procedure typically lasts until the vehicle is left off for an extended period, usually overnight or for several hours. This suggests that the system loses its learned parameters when power to the responsible module (often integrated into the motor) is cycled off and on fully, or when a voltage drop occurs during the next start-up.

Q: Where can I find a reliable Peugeot Expert wiring diagram?

A: Official Peugeot service manuals and technical documentation are the most reliable sources for wiring diagrams. These are often available through subscription services for professional mechanics or sometimes in workshop manuals specific to your vehicle model and year. Online forums and enthusiast sites may also share diagrams, but always cross-reference them for accuracy, as wiring can vary slightly between trim levels and production years.

Q: What is the BSI in a Peugeot, and why is it so important?

A: The BSI stands for Body Systems Interface. It's a central electronic control unit in Peugeot (and other PSA Group) vehicles that acts as a gateway and controller for a vast array of electrical and electronic functions. It manages communication between different ECUs, controls lighting, wipers, central locking, immobiliser, dashboard instruments, and crucially, power windows. Its importance lies in its role as a central hub, integrating and coordinating many of the vehicle's convenience and security features. Any issues with the BSI can have widespread electrical symptoms.

In conclusion, the intermittent 'forgetfulness' of your Peugeot Expert's electric window is a common yet perplexing issue that goes beyond a simple mechanical fault. While the daily reset offers temporary relief, the long-term solution lies in a thorough diagnosis, often requiring specialist tools to identify whether the problem stems from a failing position sensor within the motor, a subtle wiring fault, or a more complex BSI-related issue. Addressing this effectively will restore full functionality to your window and eliminate that frustrating daily ritual.
