Rascal Electric Mobility Scooters are more than just a mode of transport; for many, they are a vital link to independence and a significantly improved quality of life. These sophisticated machines, while robust and reliable, depend on a complex network of electrical components working in perfect harmony. At the heart of this intricate system lies the wiring diagram, a blueprint that dictates how every part connects and communicates. Understanding these diagrams is not just for the technically inclined; it's crucial for anyone who wants to ensure their Rascal scooter is maintained correctly, functions optimally, and operates safely. This guide delves into the intricacies of Rascal electric mobility scooter wiring, shedding light on the essential components and the importance of their interconnectivity.
The Importance of Wiring Diagrams
A Rascal Electric Mobility scooter's wiring diagram is an invaluable resource. It provides a detailed visual representation of all the electrical pathways within the scooter. This includes how the motor, battery, controller, throttle, and various safety features are interconnected. For owners and maintenance technicians alike, this diagram is the key to troubleshooting, repairs, and even understanding the fundamental operation of the scooter. Without a clear understanding of the wiring, identifying issues like a loose connection, a broken wire, or a faulty component can be a daunting, and potentially dangerous, task. Proper wiring ensures that the flow of electricity is consistent and correct, preventing short circuits, component damage, and ensuring the scooter performs as intended.
Key Components in Rascal Scooter Wiring
To effectively understand a Rascal mobility scooter's wiring diagram, it's essential to be familiar with its primary electrical components:
1. The Battery System

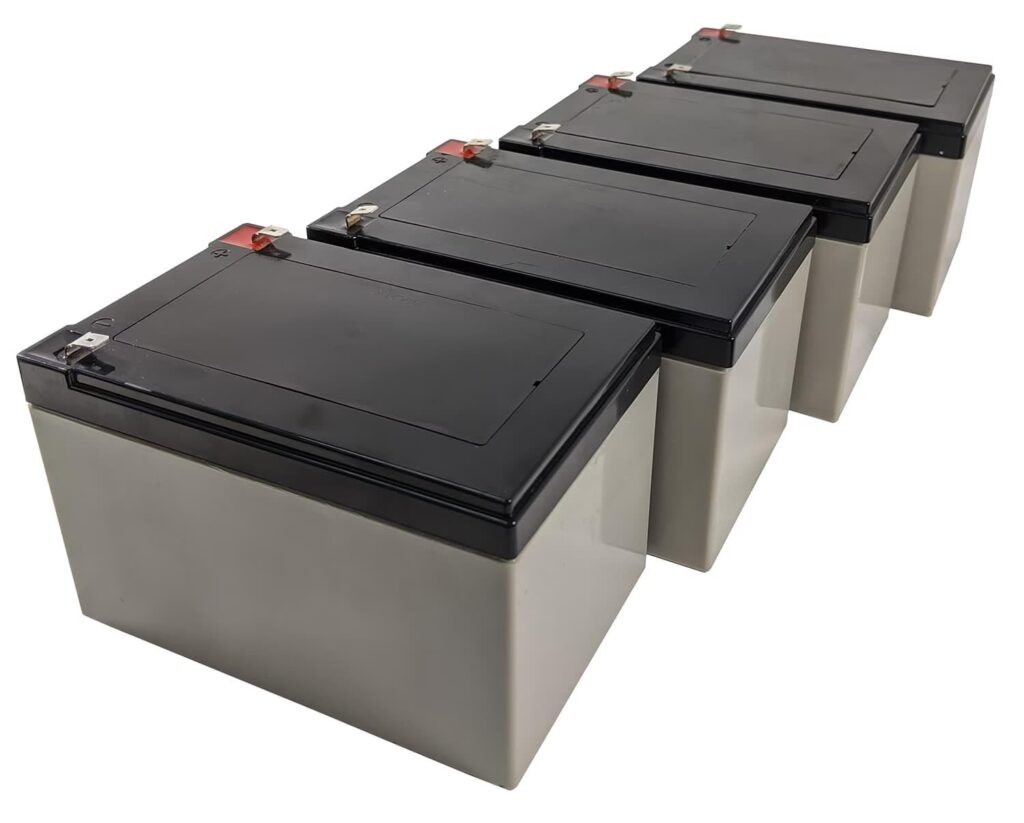

The battery is the lifeblood of any electric mobility scooter. Rascal scooters typically utilise 24-volt lithium-ion or sealed lead-acid (SLA) batteries, chosen for their reliability and power output. The wiring from the battery to the controller is critical. It must be of sufficient gauge to handle the current required by the motor and controller, and connections must be secure to prevent power loss or intermittent operation. The diagram will illustrate the polarity of the battery connections (positive and negative) and any associated fuses or circuit breakers designed to protect the system from overcurrents. Understanding the battery's capacity and its charging system is also paramount for the scooter's longevity and performance.
2. The Controller (The Brains of the Operation)
The controller, often referred to as the control unit or Electronic Speed Controller (ESC), is the central nervous system of the mobility scooter. It receives input from the throttle and other sensors and translates these commands into signals that regulate the motor's speed, torque, and direction. The wiring diagram will show how the controller connects to the battery (for power), the motor (for propulsion), the throttle (for user input), and potentially diagnostic ports or other integrated safety features. A Rascal electric mobility control unit can be a complex piece of electronics, often containing microprocessors and sophisticated algorithms to manage power delivery efficiently and safely. Issues with the controller can manifest in various ways, from jerky movements to a complete lack of power, and the wiring diagram is the first place to look for diagnostic clues.
3. The Motor
The motor is what actually drives the scooter. Rascal Electric Mobility scooters commonly employ brushless DC motors, known for their efficiency, durability, and superior torque compared to older brushed motor designs. The wiring diagram will detail the connections between the controller and the motor, which typically involve multiple wires (often three for brushless motors) that carry power and control signals. Understanding these connections is vital for diagnosing motor performance issues, such as overheating or a loss of power. The diagram might also indicate any thermal sensors integrated into the motor that communicate with the controller to prevent overheating.
4. Throttle and User Interface
The throttle, usually a tiller-mounted lever or a twist grip, allows the user to control the scooter's speed. Its wiring connects directly to the controller, sending proportional signals based on the user's input. Other user interface elements, such as battery level indicators, speedometers, and mode selection buttons, also have their dedicated wiring paths shown on the diagram. Ensuring these connections are sound is crucial for responsive and intuitive control of the scooter.
5. Braking Systems and Safety Features
Modern mobility scooters incorporate various safety features, including electromagnetic brakes that engage automatically when the throttle is released or in the event of a power failure. The wiring diagram will illustrate how these braking systems are integrated into the overall circuit, often controlled directly by the controller. Other safety features, such as lighting systems (headlights, taillights, indicators) and horn, will also have their specific wiring routes depicted.
Understanding the Diagram: A Practical Approach
When faced with a Rascal Electric Mobility scooter wiring diagram, it's helpful to approach it systematically:
- Identify the Key: Most diagrams come with a legend or key that explains the symbols used for different components and wire types.
- Trace the Power Flow: Start from the battery and follow the wires to see how power is distributed to the controller and then to the motor.
- Locate Components: Use the diagram to pinpoint the physical location of each component on the scooter.
- Check Connections: Pay close attention to where wires connect. Look for any anomalies or potential points of failure.
Common Wiring Issues and Troubleshooting
Several common issues can arise from faulty wiring in Rascal mobility scooters:
| Symptom | Potential Wiring Cause | Troubleshooting Step (Refer to Diagram) |
|---|---|---|
| No power to the scooter | Loose battery connection, blown fuse, faulty main power wire. | Check battery terminals, fuse holder, and main power wire connection to the controller. |
| Intermittent stopping or jerky movement | Loose throttle connection, damaged motor wires, faulty controller connection. | Inspect throttle wiring at both ends, check motor phase wires for damage, ensure controller connectors are seated firmly. |
| Motor not running, but lights work | Faulty motor connection, issue with motor phase wires, or controller fault. | Verify motor wiring connections to the controller. If connections are good, the issue may be within the motor or controller itself. |
| Brakes not engaging/disengaging properly | Issue with brake switch wiring or connection to the controller. | Trace the wiring for the brake sensor/switch and ensure it's correctly connected to the controller. |
Model Specifics and Variations
It's important to note that Rascal offers a diverse range of mobility scooter models, such as the Rascal 235, Rascal 600 Series, Rascal Ultralite 480, and Rascal Liteway 214, among others. Each model may have slight variations in its wiring configuration, component placement, and specific controller unit. Therefore, always ensure you are using the wiring diagram that precisely matches your specific Rascal scooter model. Referencing owner's manuals, such as the Rascal 600t Owner's Manual or the Rascal 388 Manual, can provide model-specific details and diagrams.
Conclusion
The wiring diagram for a Rascal Electric Mobility scooter is an indispensable tool for maintenance, repair, and ensuring the safe and efficient operation of the device. By understanding the roles of the battery, controller, motor, and other components, and by learning to interpret the diagrams themselves, owners and technicians can effectively troubleshoot issues and keep these essential mobility aids in peak condition. Regular checks of wiring connections and adherence to the manufacturer's guidelines, as detailed in the relevant wiring diagrams and owner's manuals, will undoubtedly contribute to the longevity and reliable performance of your Rascal mobility scooter, allowing you to maintain your independence and freedom for years to come.
Frequently Asked Questions (FAQs)
Q1: Where can I find the wiring diagram for my specific Rascal scooter model?
A1: The most reliable sources are the official owner's manual for your specific Rascal model, or directly from the manufacturer or authorised spare parts suppliers like "Mobility Parts And Service Official Supplier" or "Monster Scooter Parts" who often provide technical documentation.
Q2: Can I make modifications to the wiring of my Rascal scooter?
A2: While minor modifications might be possible for experienced individuals, it is generally not recommended unless you have a thorough understanding of electrical systems and the specific Rascal wiring. Incorrect modifications can void warranties, compromise safety, and damage components.
Q3: What does a "control unit conversion kit" for Rascal scooters typically include?
A3: A control unit conversion kit, like those for the Rascal 230-305 series, usually includes a replacement controller and sometimes a compatible throttle or wiring harness, designed to upgrade or replace a faulty control system.
Q4: How often should I check the wiring on my Rascal mobility scooter?
A4: It's advisable to perform visual checks of visible wiring and connections periodically, perhaps every few months, or anytime you notice an unusual performance issue. A more thorough check might be recommended during annual servicing.
Q5: What is the typical voltage for Rascal mobility scooter batteries?
A5: Most Rascal electric mobility scooters operate on a 24-volt system, utilising either lithium-ion or sealed lead-acid batteries.
