Demystifying Aircraft Fuel: A Pilot's Guide

Understanding Aircraft Fuel Requirements: A Comprehensive Overview

The question of how much fuel an aircraft should carry is paramount to flight safety. It's not a matter of simply filling the tanks; rather, it's a meticulously calculated science dictated by international regulations and operational considerations. This article delves into the intricacies of aircraft fuel planning, breaking down the various components that ensure a flight can be completed safely, even in the face of unforeseen circumstances. We will primarily focus on the International Civil Aviation Organization (ICAO) requirements, which form the bedrock of global aviation safety standards, while acknowledging that other authorities like the FAA and EASA may impose additional stipulations.

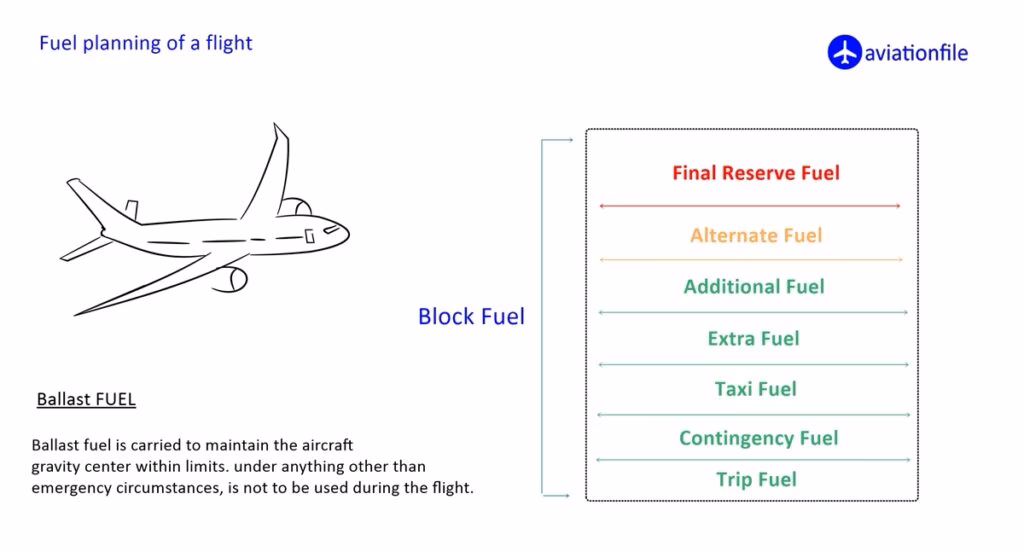

The Pillars of Fuel Planning: Key Components

At its core, an aeroplane must carry enough usable fuel to complete its planned flight safely and to accommodate deviations from the planned operation. This involves a comprehensive pre-flight calculation that accounts for several critical fuel elements:

• Taxi Fuel: This is the fuel anticipated to be consumed during the aircraft's start-up and taxiing operations before takeoff.
• Trip Fuel: This is the estimated fuel required for the aircraft to fly from the point of takeoff (or in-flight re-planning) until landing at the destination aerodrome, taking into account all operating conditions.
• Contingency Fuel: This vital component is designed to compensate for unforeseen factors that can impact fuel consumption. It's typically calculated as 5% of the planned trip fuel, or enough fuel to fly for 5 minutes at holding speed at 450 metres (1500 feet) above the destination aerodrome in standard conditions, whichever is greater. Unforeseen factors can include deviations from forecast weather, extended taxi times, extra holding patterns, or changes in planned routing or cruising levels.
• Destination Alternate Fuel: When a destination alternate aerodrome is required or planned, this fuel is calculated to allow for a missed approach at the destination, climbing to the expected cruising altitude between the destination and alternate, flying the route to the alternate, descending to the point of initiating the approach, and conducting the approach and landing at the alternate aerodrome. If two alternate aerodromes are required, the calculation uses the one demanding the greater amount of alternate fuel. If no alternate aerodrome is used, a specific amount of fuel is still required, equivalent to 15 minutes of flight at holding speed at 1500 feet above the destination.
• Final Reserve Fuel: This is a crucial safety buffer, calculated based on the estimated mass on arrival at the destination alternate or destination aerodrome. For turbine-engined aeroplanes, it's typically 30 minutes of flight at holding speed at 1500 feet above aerodrome elevation in standard conditions. For reciprocating engine aeroplanes, it's 45 minutes of flight under specified conditions.
• Additional Fuel: This is carried if the sum of the minimum required fuel (Trip, Contingency, Destination Alternate, and Final Reserve) is insufficient to cover specific scenarios, such as proceeding to an alternate in the event of engine failure or depressurisation, or to meet Extended Diversion Time Operations (EDTO) critical fuel scenarios.
• Discretionary Fuel: This is extra fuel that the pilot-in-command may choose to carry at their discretion, perhaps for training purposes or to account for potential extended operations.

Detailed Breakdown of Fuel Components

Let's delve deeper into the specifics of each fuel component:

Taxi Fuel Explained

Taxi fuel is the anticipated fuel burn during ground operations. This includes the initial engine start-up and the entire taxiing phase until the aircraft is positioned for takeoff. Factors influencing taxi fuel include the distance to be covered on the ground, taxiway congestion, potential for holding patterns on the ground, and the use of the Auxiliary Power Unit (APU).

Trip Fuel: The Core of the Journey

Trip fuel is the bedrock of any flight plan. It's the fuel calculated for the direct flight from takeoff to landing, factoring in crucial variables such as the aircraft's weight, atmospheric conditions (wind, temperature), air traffic control (ATC) routing, and the chosen cruising altitude. Aircraft manufacturers provide detailed performance data, and fuel consumption monitoring systems offer real-time insights that inform these calculations.

Contingency Fuel: Preparing for the Unexpected

Contingency fuel is where the principle of 'better safe than sorry' truly comes into play. It's designed to cover minor deviations from the flight plan. For instance, if the wind is stronger than forecast, or if ATC reroutes the aircraft, contingency fuel provides the necessary buffer. The 5% of trip fuel rule, coupled with the 5-minute holding fuel minimum, ensures a baseline level of protection against common operational variations.

Destination Alternate Fuel: The Safety Net for the Arrival

When the weather at the destination aerodrome is marginal, or if there's a risk of closure, a destination alternate aerodrome becomes mandatory. The fuel calculation for this component is comprehensive, ensuring that the aircraft can safely divert and land at the alternate if necessary. This includes fuel for a go-around at the destination, the climb, cruise, descent, and approach at the alternate. For isolated aerodromes (those with limited or no alternative landing options), more substantial alternate fuel is required, often calculated to provide a significant reserve of flying time.

Final Reserve Fuel: The Absolute Minimum

Final reserve fuel is the last line of defence. It's the fuel that must remain in the tanks upon landing at the destination or alternate aerodrome. This is a non-negotiable safety margin, ensuring that even after reaching the intended landing spot, there's still enough fuel for a missed approach and a subsequent diversion to another suitable aerodrome if required.

Additional and Discretionary Fuel: Tailoring Safety

Additional fuel is carried to address specific operational risks, such as the possibility of an engine failure at a critical point in the flight, requiring a diversion. Discretionary fuel allows the pilot-in-command to exercise judgment, perhaps adding a bit more fuel to account for training requirements or anticipated delays not covered by standard calculations.

Pilot-In-Command's Role and Responsibilities

The Pilot-in-Command (PIC) bears the ultimate responsibility for ensuring the safe completion of the flight. This involves not only accurate pre-flight calculations but also continuous monitoring of fuel levels throughout the flight. Key responsibilities include:

• Ground Operations: The PIC must consider factors like push-back time and delay engine start-up until closer to the tug disconnection point to conserve fuel. In the event of delays, weather, or emergencies, the PIC must be aware of the minimum brake release fuel and consider actions like shutting down an engine to conserve fuel.
• Takeoff Considerations: A de-rated takeoff, optimizing flap configuration, and ensuring the correct cost index and planned climb speed are all crucial for efficient fuel burn during the high-demand takeoff phase.
• Cruise Management: Adjusting the cruise profile based on wind, temperature, and weight is essential for optimal fuel efficiency. The PIC must also monitor fuel reserves during descent to ensure sufficient fuel for the approach.
• Descent and Holding: Reduced airspeed during descent significantly lowers fuel consumption. The PIC should aim for an optimum descent profile, often at idle speed. Upon receiving holding clearance, a speed reduction should be initiated to conserve fuel. If fuel reserves are insufficient for the expected holding time, the PIC must negotiate a better Expected Further Clearance (EFC) time or initiate a diversion.
• Approach and Landing: Maintaining a clean aircraft configuration for as long as practical, using reduced flap settings for approach and landing, and employing idle reverse thrust instead of full reverse can all contribute to fuel savings.
• In-Flight Monitoring: Regular fuel checks are mandatory. If the fuel at the destination is projected to be less than the required alternate fuel plus final reserve fuel, the PIC must decide whether to continue or divert. If no alternate is required, landing below final reserve fuel is strictly prohibited.

When is a Destination Alternate Aerodrome Required?

Generally, at least one destination alternate aerodrome is required for Instrument Flight Rules (IFR) flights unless specific conditions are met:

1. The flight duration is such that the approach and landing at the destination can be made under Visual Meteorological Conditions (VMC), and either separate runways are usable with at least one having an operational instrument approach procedure.
2. The destination aerodrome is an isolated aerodrome.

Table: Illustrative Fuel Planning Scenario

While a specific table with numerical data is not provided in the source material, a typical fuel plan would detail:

Frequently Asked Questions

Q1: How much taxi fuel should be used before take-off?
There is no fixed amount. Taxi fuel is the amount expected to be consumed before take-off during start-up and taxi operations, and it is calculated based on expected taxi time and conditions.

Q2: What are the basic fuel requirements for an aeroplane?
An aeroplane must carry enough usable fuel to complete the planned flight safely and allow for deviations. This includes taxi fuel, trip fuel, contingency fuel, destination alternate fuel, and final reserve fuel.

Q3: When is a destination alternate aerodrome NOT required?
A destination alternate is not required if the flight duration allows for landing in Visual Meteorological Conditions (VMC), and either separate runways are usable with at least one having an operational instrument approach procedure, or the aerodrome is considered isolated.

In conclusion, the meticulous calculation and management of aircraft fuel are fundamental to aviation safety. From the initial taxi to the final landing, every component of fuel planning plays a critical role in ensuring that pilots have the necessary resources to navigate the skies safely and responsibly.
